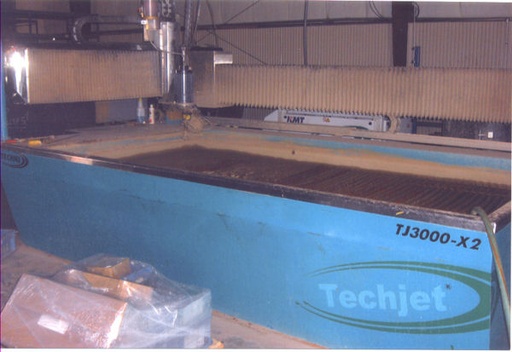

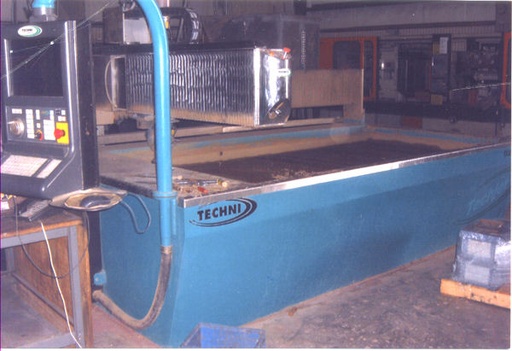

Specifications:
Table size:........................ 5'3" x 10'6"
Cutting envelope:.................. 5' x 10'
Accuracy of motion:................ +/- 0.001"
Repeatability of motion:........... +/- 0.0005"
Maximum air speed:................. 1000 IPM
Maximum cutting speed:............. 1000 IPM
Maximum cutting pressure:.......... 60,000 PSI
Intensifier:....................... KMT
Horse Power:....................... 50
Maximum material thickness:........ 6"
Dimensions:........................ 14' x 7'6" x 6'6"
Weight (empty):.................... 6,000 lbs
Weight (with water):............... 18,000 lbs
Equipped with:
PAC45- 5-Axis cutting provides bevel cutting to 45 degrees with
with continuous rotation
Tech sense provide "lights out" operation
Water raise and lower
Abrasive hopper

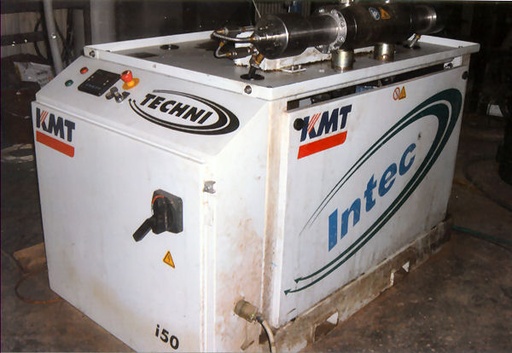

KMT 50 hp Intensifier (55,000 psi)
Abrasive waste removal system

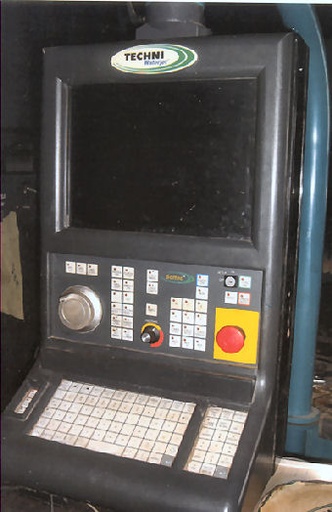

Softec Software Version V4.200.15 (most recent version)
Machine has been commissioned and fully calibrated by Techi
Waterjet in Lenexa, Ks
KMT intensifier pump has new seals, oil cartridge and check valves
New Replacement cost: $245,000
