Catalogue Specifications
Bending Capacity: 4-1/2" O.D. x .335" Wall
Centerline Radius: 23.6" (Maximum)
2.0" (Minimum)
Maximum Tube Length into the Collet: 157.5" (External)
137.8" (Internal)
Length of Tube into the Collet Before Last Bend: 14.76" (External)
3.94" (Internal)
Degree of Bend (C-Axis):............ 0 - 193 (Maximum)
Plane of Bend (B-Axis):............. 0 - 360 Degrees
Tube Working Height:................ 47-1/4"
Tube Height from Tooling Platform:.. 3-3/4"
Follower Slide Stroke:.............. 29.78"
Clamp Slide Stroke (Direct Acting):. 9"
Horizontal Shift (X-Axis):.......... 23.62" (Max.)
Axis Speed: Y (Feed):............... 1575 IPM
B (Rotate):......................... 20 RPM
C (Bend):........................... 3.5 RPM
X (Radius):......................... 393.7 IPM
EQUIPPED WITH:
Addison 4-Axis CNC Control
Motorized Carriage for Plane of Bend & Distance
Between Bends
Direct Acting Pressure Die
Air Electric Oil Chiller
Electrical Control (Separate, Free-Standing Panel)
Operator's Podium
Assorted Collets (I.D. & O.D.)
Approximate Overall Dimensions: 230" L-R x 105" F-B x 80" H
Approximate Weight: 17000 Lbs

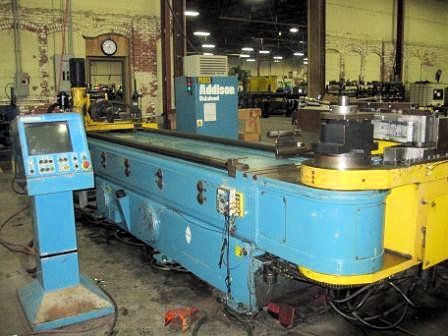

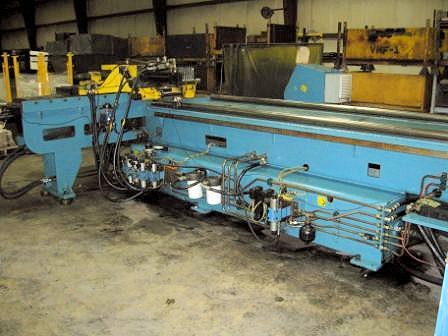

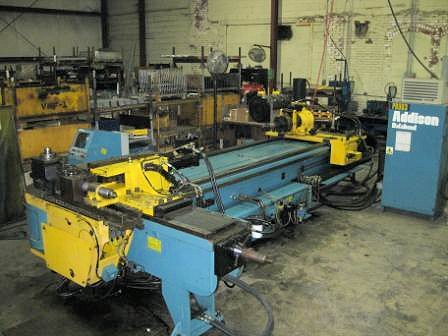

UNDER POWER IN A MIDWEST PLANT
