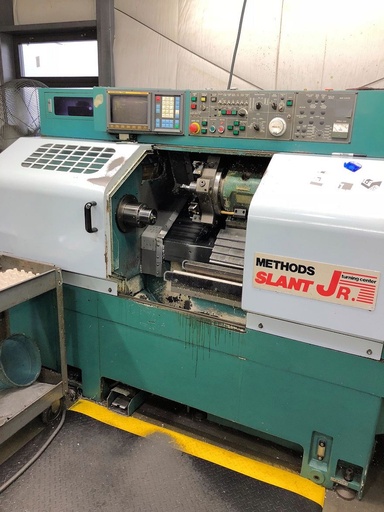

LONG BED MACHINE
Swing Over Bed 15.75"
Swing Over Saddle 11.02"
Maximum Turning Diameter 9.25"
Maximum Turning Length 23.62"
Drive Motor 10/15 HP
Spindle Speeds 45 - 4,500 RPM
Spindle Nose A2-5
Hole Thru Spindle 2.17"
Hole Thru Draw Tube 1.69"
Slide Travels 5.31" X / 25.2" Z

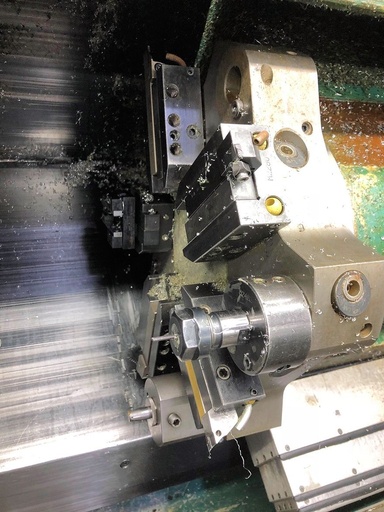

No. Tool Stations 10 Position
Tailstock Quill Stroke 3.15"
Machine Dimensions 95"L x 55" W x 70" H
Approximate Weight 6,600 lbs
Fanuc 10T CNC Control
5C Collet Closure
6" 3-Jaw Chuck
All Available Tooling
All Available Manuals
Tailstock
