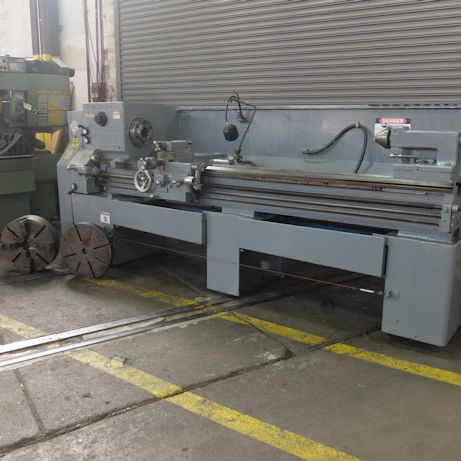

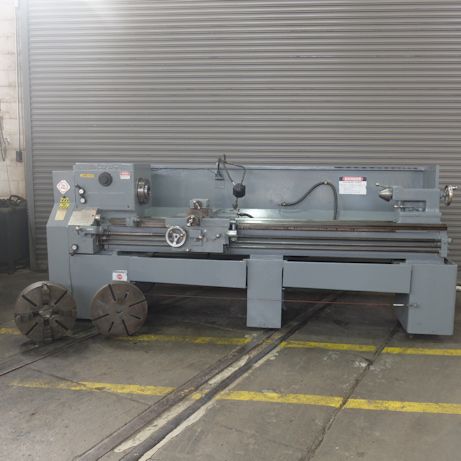

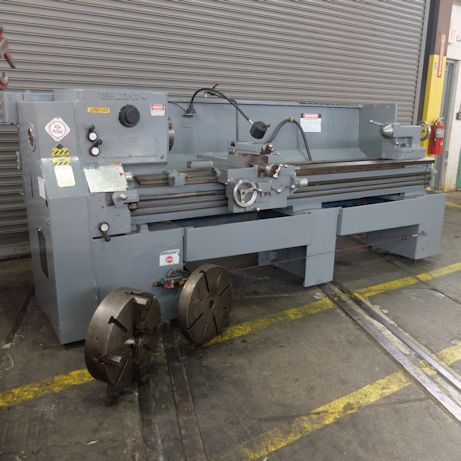

MACHINE SPECS:
Swing over Bed.................. 19"
Swing over Cross Slide.......... 11"
Center Distance................. 78"
Spindle Mount................... D1-8
Spindle Bore.................... 3"
Spindle HP...................... 10 220/440 3 Phase wired 440
Spindle Speeds.................. (12) 40 - 1600 RPM
Threads Inch.................... 2 - 112 TPI?
Metric.......................... .25 - 9 MM
Feeds........................... .0032 - .104
Tailstock Travel................ 6"
Tailstock Taper................. 4 MT
Weight.......................... Approx 6000 LBS
EQUIPPED WITH:
12" 4 Jaw Chuck
12" Face Plate
Inch/Metric Threading and Inch Metric Reading Dials
Thread Dial
Micrometer Stop
Bull Nose Live Center
Coolant
Full Length Splash Guard?
Hardways
Good Condition - Shifts Well and the ways are nice
FROM LARGE DEFENSE CONTRATOR
Inspect Under Power in Our Lebanon NJ Warehouse
