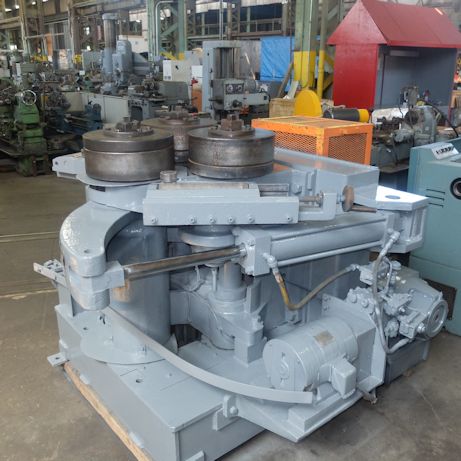

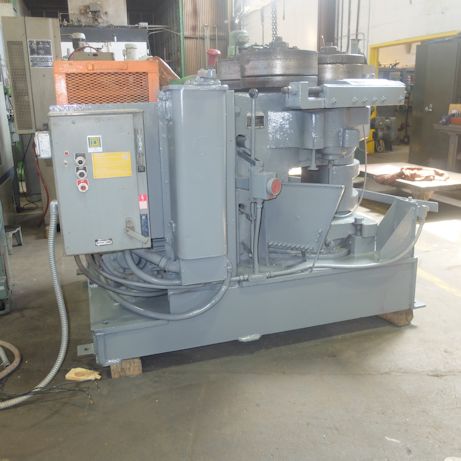

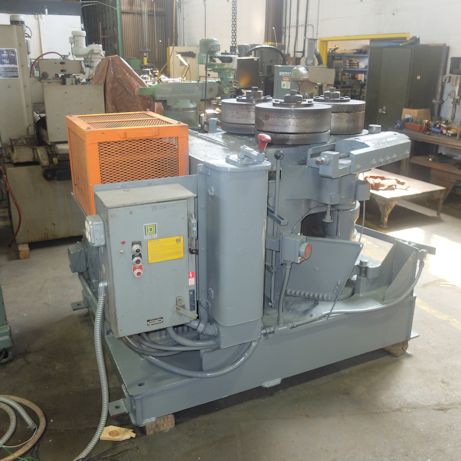

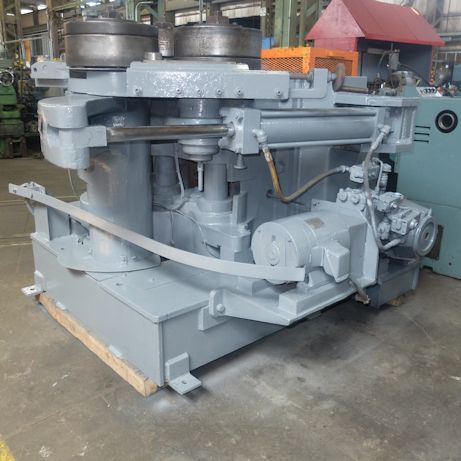

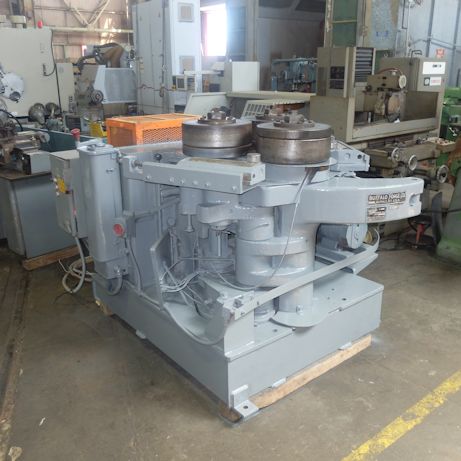

4" x 3 1/2" x 5/8" BUFFALO FORGE,HORIZONTAL,MODEL 2HPB,VARIABLE SPEED,TOOLING   Our stock number: 92305

4 x 3 1/2 x 5/8 BUFFALO FORGE,HORIZONTAL,MODEL 2HPB,VARIABLE SPEED,TOOLING

Click on picture below for larger version
4 x 3 1/2 x 5/8 BUFFALO FORGE,HORIZONTAL,MODEL 2HPB,VARIABLE SPEED,TOOLING4 x 3 1/2 x 5/8 BUFFALO FORGE,HORIZONTAL,MODEL 2HPB,VARIABLE SPEED,TOOLING4 x 3 1/2 x 5/8 BUFFALO FORGE,HORIZONTAL,MODEL 2HPB,VARIABLE SPEED,TOOLING
4 x 3 1/2 x 5/8 BUFFALO FORGE,HORIZONTAL,MODEL 2HPB,VARIABLE SPEED,TOOLING4 x 3 1/2 x 5/8 BUFFALO FORGE,HORIZONTAL,MODEL 2HPB,VARIABLE SPEED,TOOLING4 x 3 1/2 x 5/8 BUFFALO FORGE,HORIZONTAL,MODEL 2HPB,VARIABLE SPEED,TOOLING


LOTS OF TOOLING

Please Follow the link Below to View Under Power. The video was taken at
location. The machine was cleaned and painted at our facility.

https://youtu.be/VVEjUGvMqyQ


Machine Specs:

MODEL .............................. 2HBP
CAPACITY ANGLE LEG OUT ............. 4" X 4" X 5/8"
CAPACITY ANGLES LEG IN ............. 3-1/2" X 3-1/2" X 5/8"
MINIMUM DIAMETER LEG OUT ........... 40"
MINIMUM DIAMETER LEG IN ............ 48"
FLATS ON EDGE ...................... 4" X 1" X 48" MINIMUM DIAMETER
FLATS ON FLATS ..................... 9" X 1-1/4"X 30"MINIMUM
CAPACITY ROUNDS .................... 2-3/4" X 30" MINIMUM DIAMETER
CAPACITY SQUARES ................... 2-1/2" X 30" MINIMUM DIAMETER
ROLLING SPEED ...................... To 35 FPM Variable
Main Motor 20 HP
Hydraulic Motor 5 HP

Equipped With:

Variable Roll Speeds
Adjustable Roll Guides
Forward and Reverse

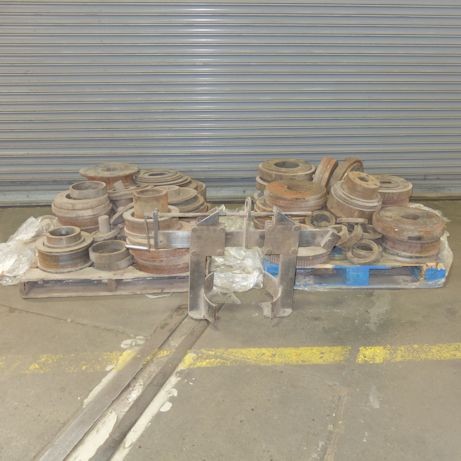

All Dies Pictured
Lifting Fixture for Die Removal

Runs Very well

Inspect Under Power in Our Lebanon NJ warehouse
