1/4" x 12', ADIRA GHS-0540,FOPBG, 2004   Our stock number: 74683

1/4 x 12', ADIRA GHS-0540,FOPBG, 2004

Click on picture below for larger version
1/4 x 12', ADIRA GHS-0540,FOPBG, 20041/4 x 12', ADIRA GHS-0540,FOPBG, 20041/4 x 12', ADIRA GHS-0540,FOPBG, 20041/4 x 12', ADIRA GHS-0540,FOPBG, 2004


CUTTING LENGTH ......................... 144"
CAPACITY, MILD STEEL.................... 1/4"
STAINLESS STEEL............... 3/16"
MINIMUM/MAXIMUM STROKE.................. 1.5"/3.6"
BLADE CLEARANCE, ADJUSTABLE............. .002" - .043"
RAKE ANGLE.............................. .28"
BLADE LENGTH............................ 122"
GAP..................................... 13"
NUMBER OF HOLDDOWNS..................... 16

EQUIPPED WIDTH:

40" CAPACITY FRONT OPERATED POWER BACK GUAGE

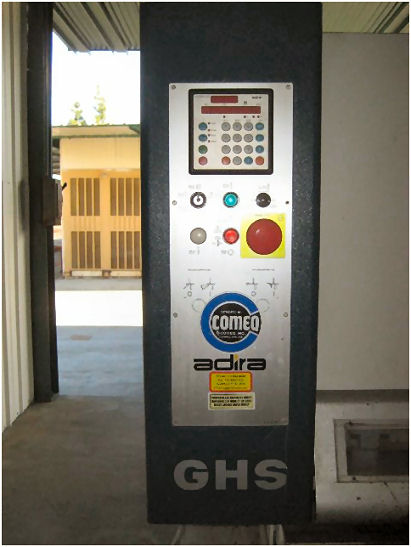

ADIRAMATIC PLC CONTROL OF BACK GUAGE
KEY LOCK SELECTOR SWITCH FOR OFF/MOTOR START/SINGLE STROKE/
CONTINUOUS STROKE, KNOB FOR INCREASING AND DECREASING STROKE
LENGTH, AND EMERGENCY STOP BUTTON
SHORT LEFT HAND SQUARING ARM
REMOTE ELECTRIC FOOT PEDAL CONTROL

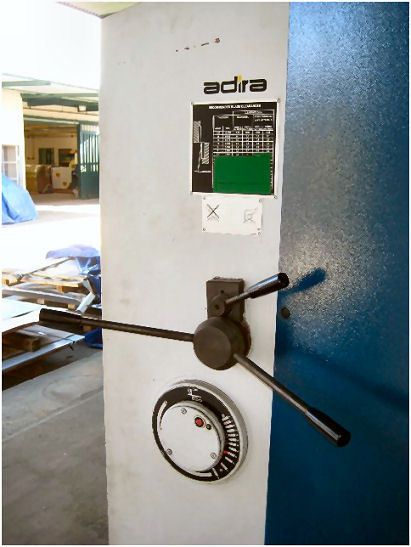

MANUAL BLADE CLEARANCE ADJUSTMENT
FULL LENGTH FINGER GUARD

EXCELLENT CONDITION IN A WEST COAST PLANT
