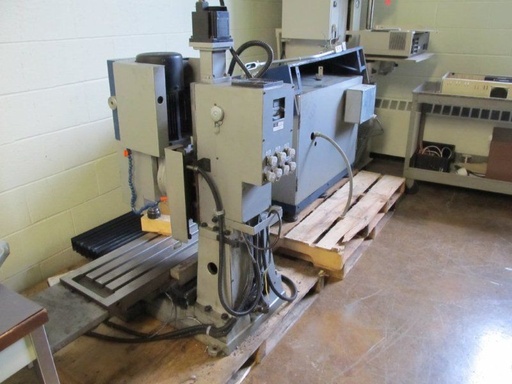

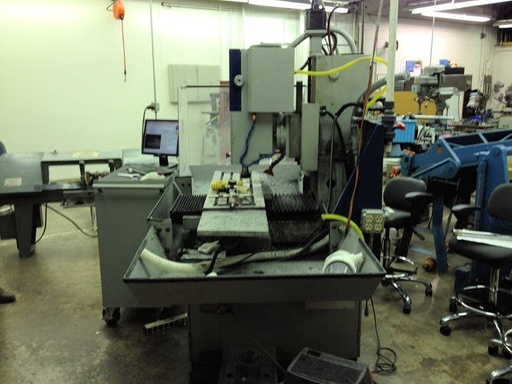

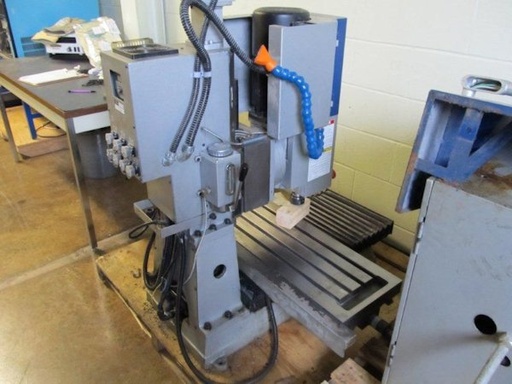

SMITHY CNC-1240,BENCH TOP CNC MILL,22"x,13"y,13.5"z,40"table, 2008   Our stock number: 84037

SMITHY CNC-1240,BENCH TOP CNC MILL,22 x,13 y,13.5 z,40 table, 2008

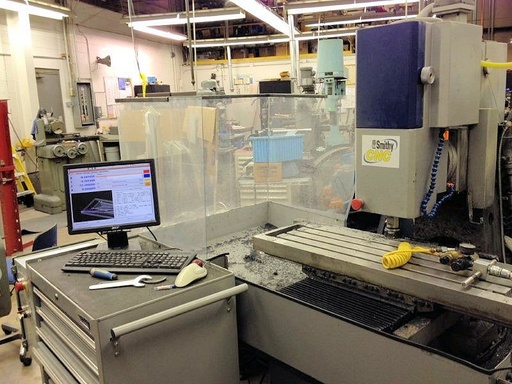

Click on picture below for larger version
SMITHY CNC-1240,BENCH TOP CNC MILL,22 x,13 y,13.5 z,40 table, 2008SMITHY CNC-1240,BENCH TOP CNC MILL,22 x,13 y,13.5 z,40 table, 2008SMITHY CNC-1240,BENCH TOP CNC MILL,22 x,13 y,13.5 z,40 table, 2008SMITHY CNC-1240,BENCH TOP CNC MILL,22 x,13 y,13.5 z,40 table, 2008
SMITHY CNC-1240,BENCH TOP CNC MILL,22 x,13 y,13.5 z,40 table, 2008SMITHY CNC-1240,BENCH TOP CNC MILL,22 x,13 y,13.5 z,40 table, 2008SMITHY CNC-1240,BENCH TOP CNC MILL,22 x,13 y,13.5 z,40 table, 2008


SPECIFICATIONS::

Table Size................... 40" x 12" 1016

Work Cube.................... 22" x 13" x 11.50"
Maximum Weight on Table...... 594 lbs
T-Slot Size.................. 5/8"

Slots on Table,.............. Qty. 4

Table Travel................. X Axis 22"
Saddle Travel Y Axis......... 13"
Head Travel Z Axis........... 11.5"
Castings Cast Iron Cast Iron
Table Surface Precision Ground Precision Ground
Ways (X, Y Axis) Dovetail Dovetail
Ways (Z Axis) Linear Bearings Linear Bearings
Head Swivel + or - 90 + or - 90

GENERAL SPECIFICATIONS:

Length........................ 39.33"

Width......................... 39.75"

Height........................ 52.33"

Machine Weight................ 1175 lbs

Footprint..................... 36" x 24"
Shipping Weight............... 1380 lbs

Maximum Work Capacities
-Drilling mild steel Max...... dia 0.781"
-Tapping...................... 0.75"

SPINDLE::
Motor HP Rating............... 2 HP

Maximum Torque................ 94 in-lb

Drive System Geared Belt Geared Belt
Minimum Speed................. 150 RPM

Maximum Speed................. 4000 RPM
Positioning Accuracy.......... + or - 0.0005"

Repeatability................. 0.00025"
Quill Diameter................ 3.15"

Spindle Bearings Angular Contact Angular Contact
Spindle to Column............. 11.5"
Spindle Taper................. R-8

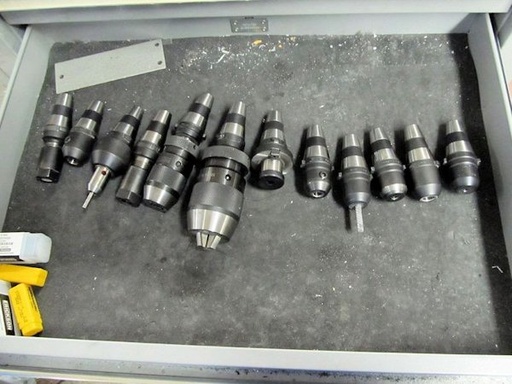

MANUAL QUICK CHANGE SYSTEM

MACHINE IS IN LIKE NEW CONDITION
