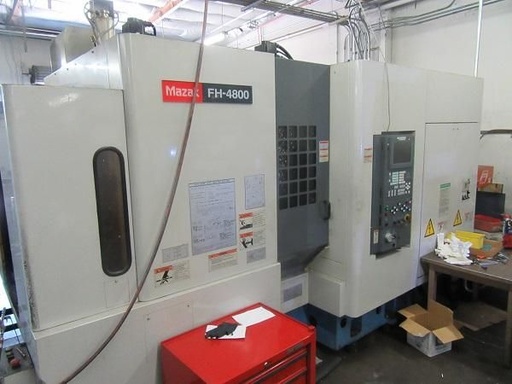

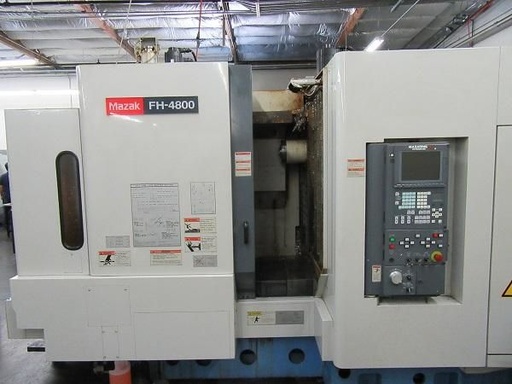

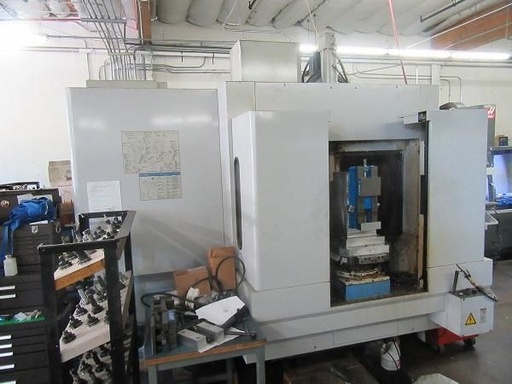

22.05"X, 24.02"Y, 22.05"Z, MAZAK FH4800,FUSION 640M CNC,FULL 4TH,12K RPM, 2002   Our stock number: 93569

22.05 X, 24.02 Y, 22.05 Z, MAZAK FH4800,FUSION 640M CNC,FULL 4TH,12K RPM, 2002

Click on picture below for larger version
22.05 X, 24.02 Y, 22.05 Z, MAZAK FH4800,FUSION 640M CNC,FULL 4TH,12K RPM, 200222.05 X, 24.02 Y, 22.05 Z, MAZAK FH4800,FUSION 640M CNC,FULL 4TH,12K RPM, 200222.05 X, 24.02 Y, 22.05 Z, MAZAK FH4800,FUSION 640M CNC,FULL 4TH,12K RPM, 2002


Specification Description
Pallet Size ...................15.7" x 15.7" (2)
Table Indexing ................Full 4th (360,000 deg.)
Table Load Capacity............880 lbs
X Travel.......................22.05"
Y Travel.......................24.02"
Z Travel.......................22.05"
Power..........................30 HP
Spindle Speed (Max.)...........12,000 RPM
Rapid Traverse Rates...........1968 IPM
ATC #..........................120
Taper..........................40

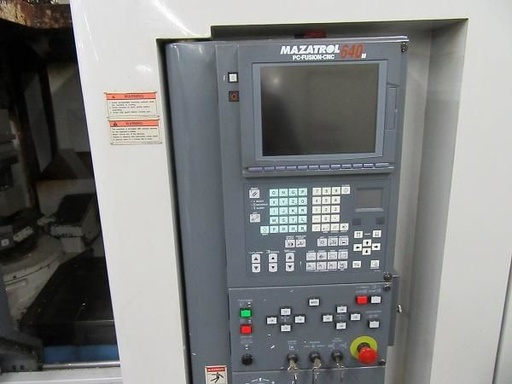

Control........................Mazatrol Fusion 640M
Weight.........................20,800 lbs (approx)
Machine Dimensions.............164" x 106" x 104"

Equipped With:

* Fusion 640M Control * Chip Conveyor * Through Spindle Coolant * Full 4th

(360,000 deg.)

EXCELLENT CONDITION ON THE WEST COAST
