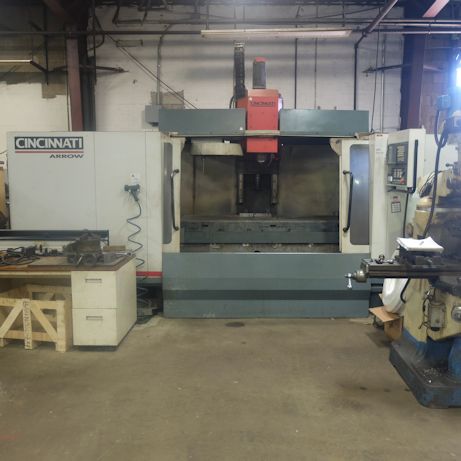

80"X, 30"Y, 32"Z, CINCINNATI 2000,FANUC 18I CNC,15 HP,8000 RPM, 21 ATC, 1999   Our stock number: 93249

80 X, 30 Y, 32 Z, CINCINNATI 2000,FANUC 18I CNC,15 HP,8000 RPM, 21 ATC, 1999

Click on picture below for larger version
80 X, 30 Y, 32 Z, CINCINNATI 2000,FANUC 18I CNC,15 HP,8000 RPM, 21 ATC, 199980 X, 30 Y, 32 Z, CINCINNATI 2000,FANUC 18I CNC,15 HP,8000 RPM, 21 ATC, 199980 X, 30 Y, 32 Z, CINCINNATI 2000,FANUC 18I CNC,15 HP,8000 RPM, 21 ATC, 1999
80 X, 30 Y, 32 Z, CINCINNATI 2000,FANUC 18I CNC,15 HP,8000 RPM, 21 ATC, 199980 X, 30 Y, 32 Z, CINCINNATI 2000,FANUC 18I CNC,15 HP,8000 RPM, 21 ATC, 1999

View Under Power Follow the Link Below

https://youtu.be/bkMrZ7htyxo


MACHINE SPECS:

Table Size 30" x 84"
Travels x 80"
Y 30"
Z 22"
Feed Rate XYZ .1 to 590 IPM
Rapids X & Y to 945 IPM
Z 745 IPM
Spindle Taper Cat 40
Speeds 60- 8000 RPM
Main HP 15
Tool Changer 21 Position
Speed 7 Seconds
Machine Weight 20,0000 LBS Approx.

EQUIPPED WITH:

FANUC 18 I 3 Axis Control
Red Cap servos
Rigid Tapping
THRU TOOL COOLANT AND FLOOR COOLANT
Remote Pulse Generator
Auto Lubrication

Good Condition

Can Be inspected Under Power in a Northeast Shop
