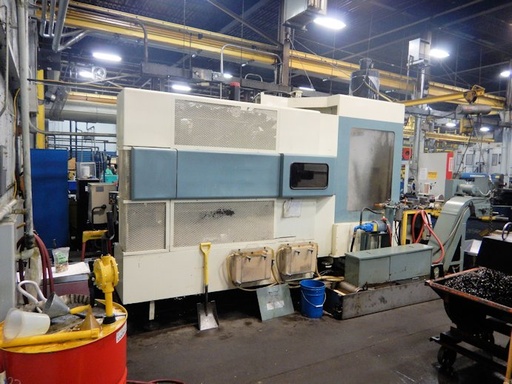

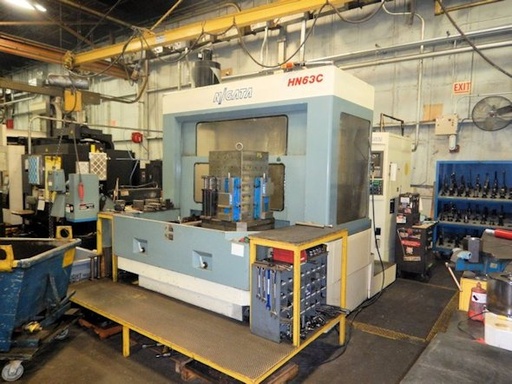

39.4"X, 33.5"Y, 29.5"Z OKUMA HN63C,4 AXIS,6500 RPM,25 HP,60ATC,50 TAPER, 1996   Our stock number: 93048

39.4 X, 33.5 Y, 29.5 Z OKUMA HN63C,4 AXIS,6500 RPM,25 HP,60ATC,50 TAPER, 1996

Click on picture below for larger version
39.4 X, 33.5 Y, 29.5 Z OKUMA HN63C,4 AXIS,6500 RPM,25 HP,60ATC,50 TAPER, 199639.4 X, 33.5 Y, 29.5 Z OKUMA HN63C,4 AXIS,6500 RPM,25 HP,60ATC,50 TAPER, 199639.4 X, 33.5 Y, 29.5 Z OKUMA HN63C,4 AXIS,6500 RPM,25 HP,60ATC,50 TAPER, 199639.4 X, 33.5 Y, 29.5 Z OKUMA HN63C,4 AXIS,6500 RPM,25 HP,60ATC,50 TAPER, 1996
39.4 X, 33.5 Y, 29.5 Z OKUMA HN63C,4 AXIS,6500 RPM,25 HP,60ATC,50 TAPER, 199639.4 X, 33.5 Y, 29.5 Z OKUMA HN63C,4 AXIS,6500 RPM,25 HP,60ATC,50 TAPER, 199639.4 X, 33.5 Y, 29.5 Z OKUMA HN63C,4 AXIS,6500 RPM,25 HP,60ATC,50 TAPER, 1996


GENERAL SPECIFICATIONS:

Pallet Size (2) 24"x24" (24.8"x24.8")
630mmx630mm
Pallet Index Full 4th Axis 360,000 deg.
X-Travel 39.4"/1000mm
Y-Travel 33.5"/850mm
Z-Travel 29.5"/750mm
Rapid Traverse X & Y 787 IPM
20,000 mm/min
Rapid Traverse Z 708 IPM
18,000mm/min
Control Type Fanuc 15-M
Spindle Speeds (Geared 2 range) 10-6,500 RPM
Spindle Drive 25 HP
Spindle Taper Cat #50
Distance Table Center to Spindle 7.9"-37.4"/200-950mm

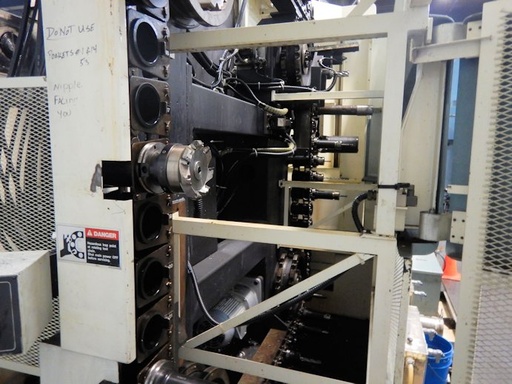

Tool Changer 60 ATC
Max. Tool Length/Weight 15.5"/44 lbs. Weight Capacity of Pallets 2,640

lbs/1,200 kg

EQUIPPED WITH

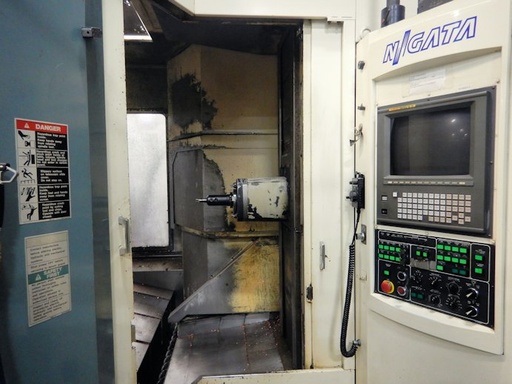

Fanuc 15-M CNC Control
Full 4th Axis, 360,000 Deg. NC Table
Flood Coolant
Chip Conveyor

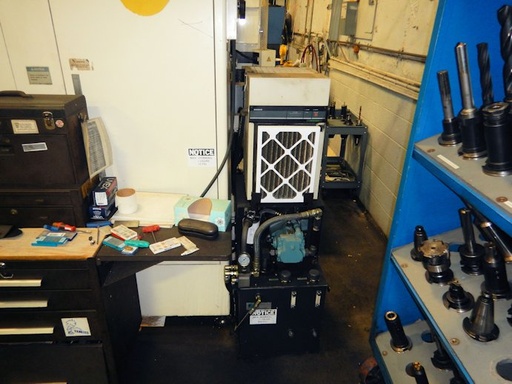

Daikin Oil Cooler
Geared Spindle Head Box Ways
