80"X, 39"Y, 39"Z, FADAL VMC-8030,10,000 RPM,30 ATC,22.5HP, CAT 40, 1997   Our stock number: 92487

80 X, 39 Y, 39 Z, FADAL VMC-8030,10,000 RPM,30 ATC,22.5HP, CAT 40, 1997

Click on picture below for larger version
80 X, 39 Y, 39 Z, FADAL VMC-8030,10,000 RPM,30 ATC,22.5HP, CAT 40, 199780 X, 39 Y, 39 Z, FADAL VMC-8030,10,000 RPM,30 ATC,22.5HP, CAT 40, 199780 X, 39 Y, 39 Z, FADAL VMC-8030,10,000 RPM,30 ATC,22.5HP, CAT 40, 1997


Specs:
X:...................80"
Y:...................30"
Z:...................30"
Power:...........22.5 HP
RPM:.............10,000 RPM
# ATC:...........30

Table-W:........30"
Table-L:.........82.5"
Taper:............CAT 40
Weight:..........18,000 lbs.
Control:.........CNC (FADAL 88HS)

Spindle Torque:.................................220 ft. lbs.
Spindle Nose to Table Top:...............5.5" - 35.5"
Table Load Capacity:........................3,750 lbs.
Rapid Traverse Rates:......................400 IPM
Max Tool Diameter:...........................3" / 6"
Max Tool Length:..............................15"
Max Tool Weight:..............................15 lbs.
Machine Dimensions (L x W x H):.....209" x 103" x 122"
Machine Weight:...............................18,000 lbs.

Has expanded memory and rigid tapping.


Under power and making parts. Only one owner. Used to cut alum, steel and

brass.

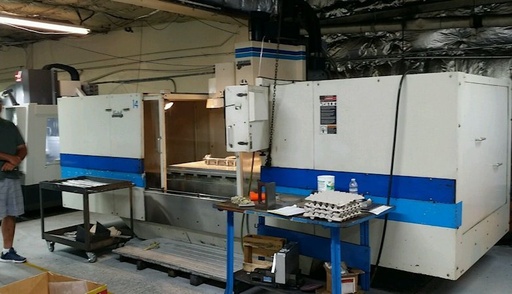

Machine has been pre-inspected. See second pic above and copy of it below.

With minor work and cost ($3.5K) this machine will be in top notch shape based

on
our third party inspectors analysis of this machine. So buy with confidence.
