60"X, 25"Y, 25"Z, MORI SEIKI MV65A-50,FANUC OM CNC,5000 RPM,50 TPR,30 ATC,1992   Our stock number: 90903

60 X, 25 Y, 25 Z, MORI SEIKI MV65A-50,FANUC OM CNC,5000 RPM,50 TPR,30 ATC,1992

Click on picture below for larger version
60 X, 25 Y, 25 Z, MORI SEIKI MV65A-50,FANUC OM CNC,5000 RPM,50 TPR,30 ATC,199260 X, 25 Y, 25 Z, MORI SEIKI MV65A-50,FANUC OM CNC,5000 RPM,50 TPR,30 ATC,1992


SPECIFICATIONS DESCRIPTION

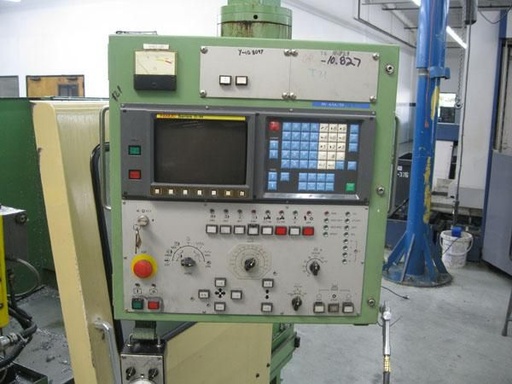

Control Fanuc OM

Travels (X,Y,Z) ................. 60" x 25.6" x 25.6"
Table............................ 76.9" x 25.6"
Max. Weight on Table ............ 4,400 lbs


Max. Spindle Speed .............. 6,000 RPM
Spindle Taper.................... #50
Max. Tool Weight................. 44 lbs
Max. Tool Length................. 13.7"
Tool Changer..................... 30 Pos
Cutting Feeds X & Y.............. 590 IPM
Cutting Feeds Z.................. 472 IPM

Equipped With:

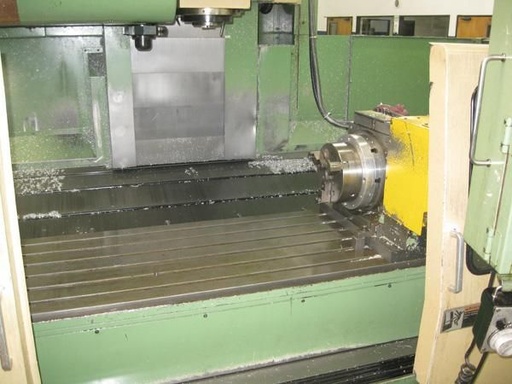

* Fanuc 0M Control * Remote Pulse Generator * 4th Axis Rotary Table

EXCELLENT CONDITION ON THE WEST COAST
