21.8"X, 15.9"Y, 19.87"Z, MITSUI SEIKI HS 3A,FULL 4TH AXIS,FANUC 15M, 1996   Our stock number: 88284

21.8 X, 15.9 Y, 19.87 Z, MITSUI SEIKI HS 3A,FULL 4TH AXIS,FANUC 15M, 1996

Click on picture below for larger version
21.8 X, 15.9 Y, 19.87 Z, MITSUI SEIKI HS 3A,FULL 4TH AXIS,FANUC 15M, 199621.8 X, 15.9 Y, 19.87 Z, MITSUI SEIKI HS 3A,FULL 4TH AXIS,FANUC 15M, 199621.8 X, 15.9 Y, 19.87 Z, MITSUI SEIKI HS 3A,FULL 4TH AXIS,FANUC 15M, 199621.8 X, 15.9 Y, 19.87 Z, MITSUI SEIKI HS 3A,FULL 4TH AXIS,FANUC 15M, 1996


MACHINE SPECS:

Pallet Size 16" x 16"
Weight capacity 1100 LBS
Travels X 21.8"
Y 15.9"
Z19.87"
B 360,000 Position ( True 4 TH )
Spindle Speeds 0 - 8000 RPM
Spindle Taper cat 40
Spindle HP 40
ATC 120 Position
Rapids 590 IPM
Weight approx 12,500

EQUIPPED WITH:

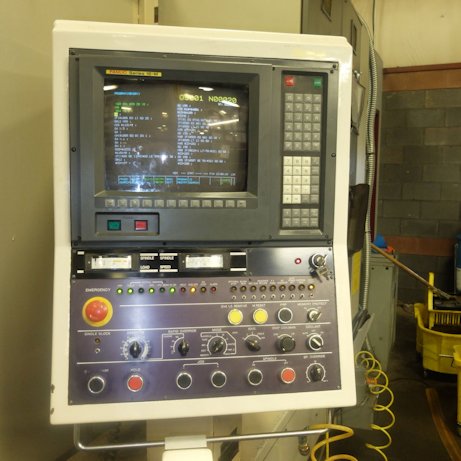

Fanuc 15 M 4 Axis CNC Control
14" Monitor
RS 232 POrt
Rigid Tapping
Coolant
Dual Pallets
Chip Conveyor
Spindle Chiller

Inspect under power in a northEast Aerospace Shop
