31.5"X, 28.7"Y, 31"Z,OKK HM-60,4 AXIS,40 ATC,50 TAPER,OKK NEO-MATIC CNC, 1999   Our stock number: 86098

31.5 X, 28.7 Y, 31 Z,OKK HM-60,4 AXIS,40 ATC,50 TAPER,OKK NEO-MATIC CNC, 1999

Click on picture below for larger version
31.5 X, 28.7 Y, 31 Z,OKK HM-60,4 AXIS,40 ATC,50 TAPER,OKK NEO-MATIC CNC, 199931.5 X, 28.7 Y, 31 Z,OKK HM-60,4 AXIS,40 ATC,50 TAPER,OKK NEO-MATIC CNC, 199931.5 X, 28.7 Y, 31 Z,OKK HM-60,4 AXIS,40 ATC,50 TAPER,OKK NEO-MATIC CNC, 199931.5 X, 28.7 Y, 31 Z,OKK HM-60,4 AXIS,40 ATC,50 TAPER,OKK NEO-MATIC CNC, 1999


MAKE........................ OKK
MODEL....................... HM-60
YEAR........................ 1999
PALLET SIZE................. (2) 24" X 24"(360,000 DEGREES- FULL 4TH)
TRAVELS X................... 31.5"
Y................... 28.7"
Z................... 31"
TABLE SURFACE TO SPDL CENT.. 1.97" TO 30.7"
TABLE CENT. TO SPDL NOSE.... 5.9" TO 37.4"
MAX. WORKPIECE WEIGHT....... 1543 LBS.
SPINDLE MOTOR............... 25HP
SPINDLE SPEED............... 35 TO 8000 RPM
SPINDLE TAPER............... CAT 50
RAPID TRAVERSE SPEED........ 1574 IPM
CUTTING FEED SPEED.......... .030 TO 1574 IPM
TOOL MAG. CAP. ............. 60 ATC
ELECTRICS................... 220V / 3PHS / 60HZ
MACHINE DIMENSIONS (APPROX). 120" X 169" X 123"H
MACHINE WEIGHT.............. 30,864 LBS.

EQUIPPED WITH:

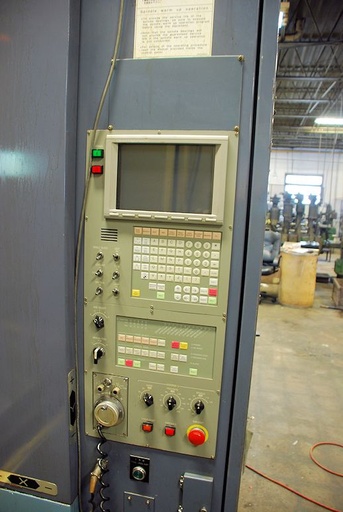

OKKK NEOMATIC CNC CONTROL WITH CRT

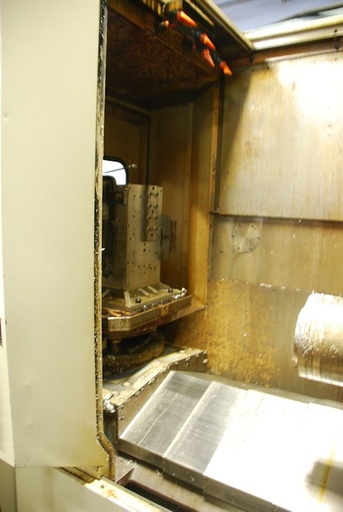

FULL 4TH AXIS PALLETS
