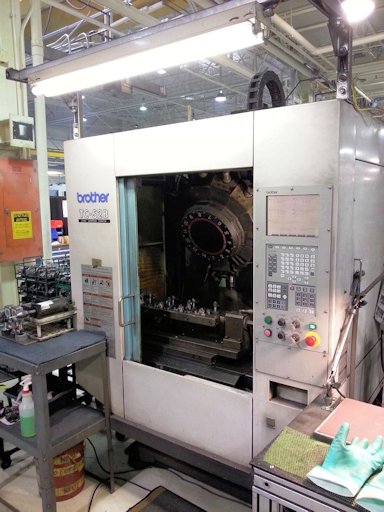

27.5"X, 14.17"Y, 12.6"Z, BROTHER TC-S2B,CNC/CRT,10000 RPM,INDEXER,RIGID, 2003   Our stock number: 85767

27.5 X, 14.17 Y, 12.6 Z, BROTHER TC-S2B,CNC/CRT,10000 RPM,INDEXER,RIGID, 2003

Click on picture below for larger version
27.5 X, 14.17 Y, 12.6 Z, BROTHER TC-S2B,CNC/CRT,10000 RPM,INDEXER,RIGID, 200327.5 X, 14.17 Y, 12.6 Z, BROTHER TC-S2B,CNC/CRT,10000 RPM,INDEXER,RIGID, 200327.5 X, 14.17 Y, 12.6 Z, BROTHER TC-S2B,CNC/CRT,10000 RPM,INDEXER,RIGID, 200327.5 X, 14.17 Y, 12.6 Z, BROTHER TC-S2B,CNC/CRT,10000 RPM,INDEXER,RIGID, 2003

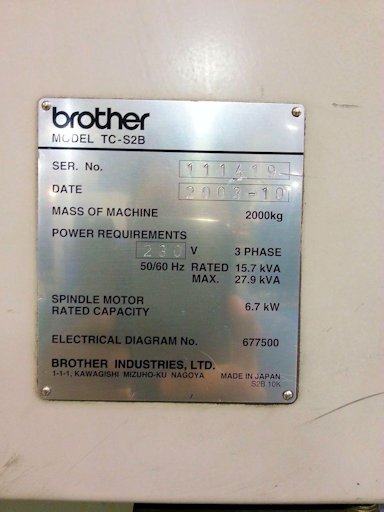

BROTHER TC-S2B-0 2003

Travel: X-Axis 27.5"
Travel: Y-Axis 14.17"
Travel: Z-Axis 12.6"

Table Size 31.5" x 12.6"
Spindle Speed 10 - 10,000 RPM
Spindle Taper BT30
Spindle Nose to Table Top 6.3" - 16.9"
Spindle Motor 13 HP
Max Tapping Speed 6000 RPM
Tools 21
Table Load Capacity 330 lbs.
Rapid Traverse Rates (X & Y / Z) 1417 / 1969 IPM
Tool Change Time (T- T / C - C) 1.1 / 1.8 Seconds
Max Tool Diameter 3.15"
Max Tool Length 7.87"
Max Tool Weight 6 lbs.
Machine Dimensions (L x W x H) 72" x 62" x 87"
Machine Weight 3968 lbs.

BROTHER CNC-A00 CNC CONTROL
10.4" Monochrome LCD
Conversational & G-Code Programming
27.5" Extended X-Axis Travel
21 Tool Turret

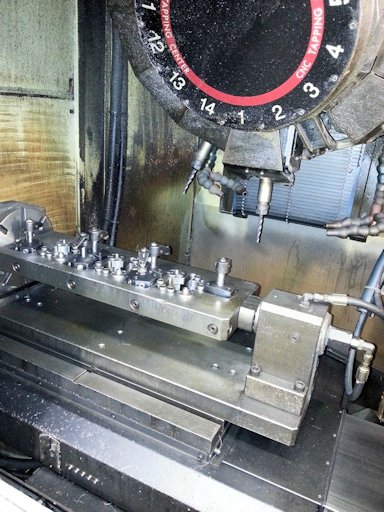

Nikken indexer with tailstock

10000 RPM Spindle Speed
Rigid Tapping
Dual Chip Chutes
New x-y ball screws
Hydraulic clamping

CURRENTLY UNDER POWER IN PRODUCTION
