50"X, 25"Y, 25.6"Z,KASUGA QUANTUM Q-1250V,50 TPR,6000 RPM,30 ATC,   Our stock number: 85362

50 X, 25 Y, 25.6 Z,KASUGA QUANTUM Q-1250V,50 TPR,6000 RPM,30 ATC,

Click on picture below for larger version
50 X, 25 Y, 25.6 Z,KASUGA QUANTUM Q-1250V,50 TPR,6000 RPM,30 ATC,50 X, 25 Y, 25.6 Z,KASUGA QUANTUM Q-1250V,50 TPR,6000 RPM,30 ATC,

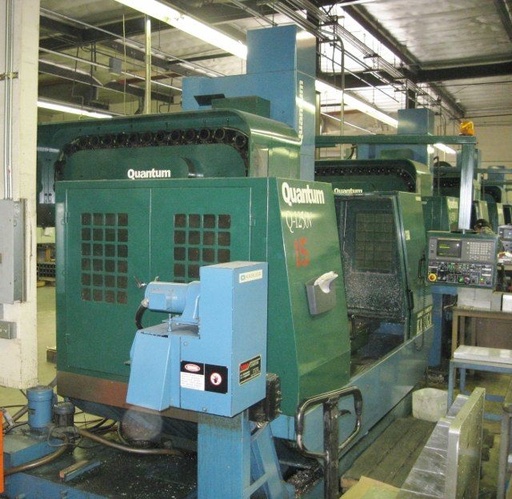

"Heavy Duty" Box Ways, Japanese Built #50

Taper Vertical Machining Center with Fanuc 18M Control.


SPECIFICATIONS:
TABLE DIMENSIONS................................ 63" x 23.6"
TABLE LOAD CAPACITY............................. 3,300 lbs
TRAVELS
X - AXIS...................................... 50"
Y - AXIS...................................... 25"
Z - AXIS...................................... 25.6"

SPINDLE CENTER TO COLUMN........................ 27.5"
SPINDLE NOSE TO TABLE........................... 6.3" - 31.9"
SPINDLE SPEED................................... 6000 RPM
SPINDLE MOTOR................................... 25 HP
SPINDLE TAPER................................... CT50
RAPID TRAVERSE.................................. 787 IPM (X,Y) 590 IPM Z
CUTTING FEEDRATE................................ 393 IPM
TOOL CHANGER CAPACITY........................... 30 ATC
MAX. TOOL WEIGHT................................ 33 LBS.
MAX. TOOL LENGTH................................ 11.8"
MAX. TOOL DIAMETER.............................. 4.9"
BALL SCREW DIAMETER............................. 1.57"
MACHINE WEIGHT.................................. 21,000 LBS.
MACHINE WIDTH................................... 190"
MACHINE HEIGHT.................................. 114"
MACHINE LENGTH.................................. 109"

EQUIPPED WITH:

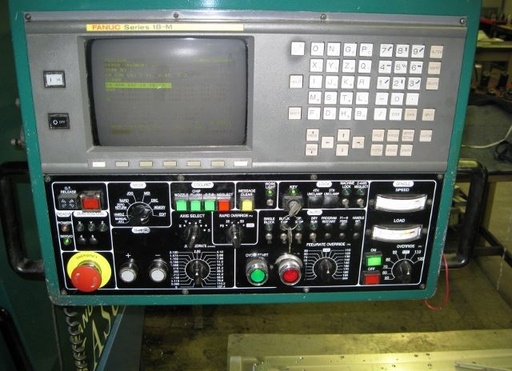

FANUC 18M CNC CONTROL
RIGID TAPPING
SIDE MOUNT TOOL CHANGER
#50 TAPER
CHIP CONVEYOR
ALL AVAILABLE MANUALS

INSPECT UNDER POWER IN A WEST COAST PLANT
