49"X, 39"Y, 33"Z, MAZAK H800,80 ATC,4500 RPM,50 TAPER,35 HP,THRU SP CLNT, 1996   Our stock number: 85022

49 X, 39 Y, 33 Z, MAZAK H800,80 ATC,4500 RPM,50 TAPER,35 HP,THRU SP CLNT, 1996

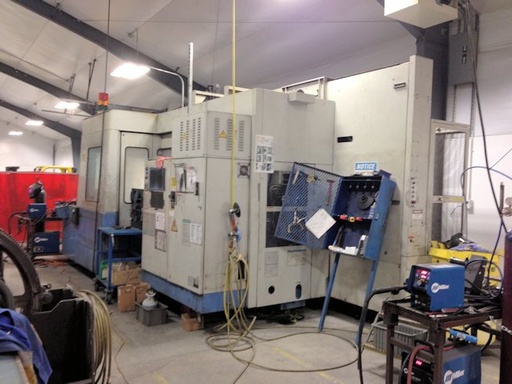

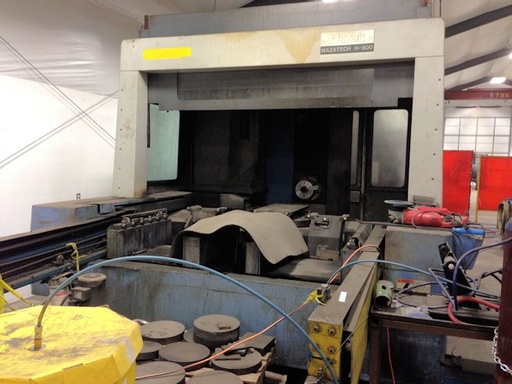

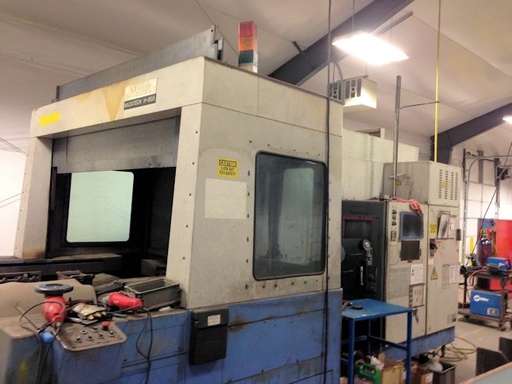

Click on picture below for larger version
49 X, 39 Y, 33 Z, MAZAK H800,80 ATC,4500 RPM,50 TAPER,35 HP,THRU SP CLNT, 199649 X, 39 Y, 33 Z, MAZAK H800,80 ATC,4500 RPM,50 TAPER,35 HP,THRU SP CLNT, 199649 X, 39 Y, 33 Z, MAZAK H800,80 ATC,4500 RPM,50 TAPER,35 HP,THRU SP CLNT, 1996


SPECIFICATIONS:
Pallet Table Size.......................... 31.5" x 31.5"
Number of Pallets.......................... 2
Maximum Workpiece Size..................... 45.3" x 45.3"
Table Load Capacity ....................... 4,840 lbs
X Axis Travel.............................. 49.2"
Y Axis Travel.............................. 39.4"
Z Axis Travel.............................. 33.5"
Table Indexing............................. 1 Degree
Distance from Spindle Center to Table Top.. 1.77" ~ 41.3"
Distance from Spindle Nose to Table Center. 9.84" ~ 43.3"
Rapid Traverse (X,Y,Z)..................... 709 IPM
Spindle Speed.............................. 4,500 RPM
Maximum Spindle Torque..................... 790 ft. lbs
Tool Magazine Capacity..................... 80 ATC
Tool Shank Configuration................... CAT 50 Taper
Max Tool Diameter / Max Tool Weight........ 5.12" / 59.4 lbs
Main Motor................................. AC 35 HP
Machine Weight............................. 47,400 lbs

EQUIPPED WITH:

MAZATROL M-PLUS CNC CONTROL
THRU SPINDLE COOLANT (100 PSI)
CHIP CONVEYOR

MACHINE IS DIRTY BUT IN GOOD RUNNING CONDITION
CAN BE PUT BACK UNDER POWER
214 HOURS SINCE NEW SPINDLE INSTALLED
