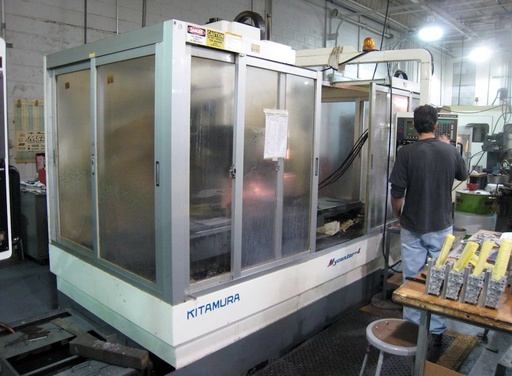

44.3"X, 22.2"Y, 22.5"Z, KITAMURA MYCENTER 4,YASNAC CNC,10,000 RPM,20 HP,1995   Our stock number: 84865

44.3 X, 22.2 Y, 22.5 Z, KITAMURA MYCENTER 4,YASNAC CNC,10,000 RPM,20 HP,1995

Click on picture below for larger version
44.3 X, 22.2 Y, 22.5 Z, KITAMURA MYCENTER 4,YASNAC CNC,10,000 RPM,20 HP,199544.3 X, 22.2 Y, 22.5 Z, KITAMURA MYCENTER 4,YASNAC CNC,10,000 RPM,20 HP,1995


YASNAC CNC WITH CRT
TABLE SIZE.................... 22.4" X 55.1"
MAX TABLE LOAD................ 2200 LBS
SPINDLE NOSE TO TABLE TOP..... 6.5" - 29"
COLUMN SLIDEWAY TO TABLE CTR.. 12" - 34.3"
X-AXIS TRAVEL................. 44.3"
Y-AXIS TRAVEL................. 22.2"
Z-AXIS TRAVEL................. 22.5"
RAPID TRAVERSE RATE........... 945 IPM(X,Y) - 630 IPM(Z)
SPINDLE SPEEDS................ 10,000 RPM
SPINDLE TAPER................. CAT 40
AUTOMATIC TOOLCHANGER......... 30 POSITIONS
APPROXIMATE WEIGHT............ 21,000 LBS

MACHINE IS IN GOOD RUNNING CONDITION IN AN EASTERN PLANT
