39.4"X, 33.5"Y, 29.5"Z,NIGATA SPN-63,24.8"pallets,12000rpm,124 atc,fanuc,1999   Our stock number: 84569

39.4 X, 33.5 Y, 29.5 Z,NIGATA SPN-63,24.8 pallets,12000rpm,124 atc,fanuc,1999

Click on picture below for larger version
39.4 X, 33.5 Y, 29.5 Z,NIGATA SPN-63,24.8 pallets,12000rpm,124 atc,fanuc,199939.4 X, 33.5 Y, 29.5 Z,NIGATA SPN-63,24.8 pallets,12000rpm,124 atc,fanuc,199939.4 X, 33.5 Y, 29.5 Z,NIGATA SPN-63,24.8 pallets,12000rpm,124 atc,fanuc,199939.4 X, 33.5 Y, 29.5 Z,NIGATA SPN-63,24.8 pallets,12000rpm,124 atc,fanuc,1999

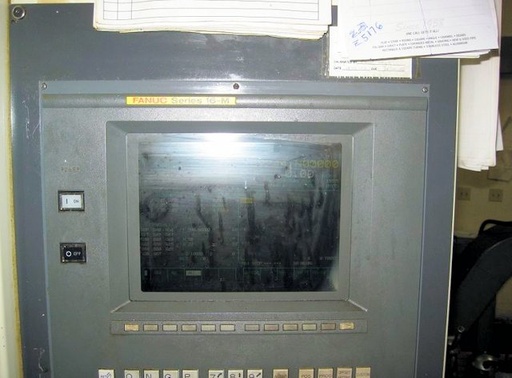

FANUC 16iM CNC CONTROL WITH CRT

Table Size -............................ 24.8 x 24.8

Table Feed Rate (ipm)................... 1181 IPM
Number of Pallets....................... 2
X-axis travel........................... 39.4"
Y-axis travel........................... 33.5"
z-axis travel........................... 29.5"
Spindle Motor (hp)...................... 40 hp
Maximum Spindle Speed (rpm)............. 50 - 12000 RPM
Spindle Taper .......................... 50
Number of Tools In Toolchanger.......... 126
Coolant thru Spindle.................... yes
Table Rotation ......................... 1 degree indexing
Approx. Machine Weight.................. 44,700 lbs

EQUIPPED WITH:
* Fanuc 16iM
* 1 deg.
* Thru Spindle Coolant
* Rigid Tap
* Helical Interpolation
* Chip Conveyor
* Approx. Hours:
Operating: 11,000 hrs
Cutting: 7,000 hrs
New Spindle approx. 2 yrs ago.
Has Memory Upgrage - has about 10X the amount it had when new.
Has Coolant Thru.

Location: California ( Mostly Aluminum Machining)
