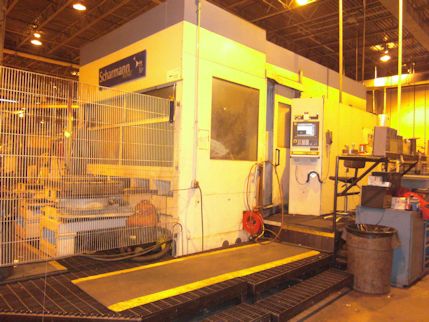

DBF 800 OFFERS PRECISE ECONOMICAL MACHINING DUE TO THE DBF (TURNING, DRILLING
AND MILLING) HEAD. COMPLETE MACHINING OF PUMP AND VALVE HOUSINGS,
FITTINGS, SEALING FLANGES AND rOCKBITS WITH ACCURACY OF 5 TO 6 UM.
X-AXIS TRAVEL............................ 51.18"(TABLE TRANSVERSAL)
Y-AXIS TRAVEL............................ 39.37"(HEADSTOCK VERTICAL)
Z-AXIS TRAVEL............................ 51.18"(COLUMN LONGITUDINAL)
B-AXIS...................................+/-9999.999 DEG(ROTARY TABLE)
U-AXIS................................... +/-35MM(1.38") - FACING SLIDE
SPINDLE MOTOR............................ 50 HP
SPEED RANGE.............................. 1 - 3500 RPM (2 GEAR STEPS)
SPINDLE TAPER............................ 50
TABLE SIZE............................... 31.5" X 31.5"(2 PALLETS)
MANUAL TOOL CHANGE INTO DBF SPINDLE
AUTOMATIC TOOL CHANGE INTO DBF SPINDLE... 90 TOOLS
COOLANT THRU SPINDLE AND SPRAYING NOZZLES
CHIP CONVEYORTOOL LIFETIME MONITORING
DYNAMIC MEASURING WITH PROBE
CNC SIEMENS SINUMERIK 840 D CNC CONTROL
1181 IPM RAPID TRAVERSE RATE
NEW COST WAS $1,500,000
INSPECT UNDER POWER
