25.6"X, 23.6"Y, 25.6"Z,KIA-HICENTER-H40,FANUC 15M,50 ATC,10,000 RPM,2 PLT,1999   Our stock number: 83014

25.6 X, 23.6 Y, 25.6 Z,KIA-HICENTER-H40,FANUC 15M,50 ATC,10,000 RPM,2 PLT,1999

Click on picture below for larger version
25.6 X, 23.6 Y, 25.6 Z,KIA-HICENTER-H40,FANUC 15M,50 ATC,10,000 RPM,2 PLT,199925.6 X, 23.6 Y, 25.6 Z,KIA-HICENTER-H40,FANUC 15M,50 ATC,10,000 RPM,2 PLT,199925.6 X, 23.6 Y, 25.6 Z,KIA-HICENTER-H40,FANUC 15M,50 ATC,10,000 RPM,2 PLT,199925.6 X, 23.6 Y, 25.6 Z,KIA-HICENTER-H40,FANUC 15M,50 ATC,10,000 RPM,2 PLT,1999
25.6 X, 23.6 Y, 25.6 Z,KIA-HICENTER-H40,FANUC 15M,50 ATC,10,000 RPM,2 PLT,199925.6 X, 23.6 Y, 25.6 Z,KIA-HICENTER-H40,FANUC 15M,50 ATC,10,000 RPM,2 PLT,199925.6 X, 23.6 Y, 25.6 Z,KIA-HICENTER-H40,FANUC 15M,50 ATC,10,000 RPM,2 PLT,1999

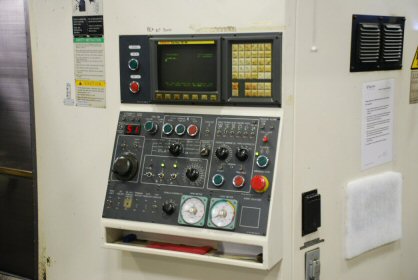

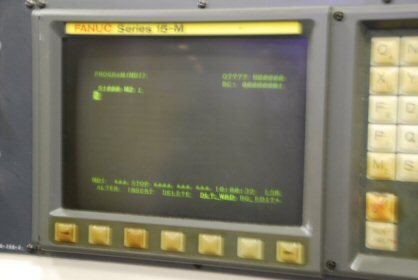

FANUC 15M CNC CONTROL WITH CRT

X-AXIS TRAVEL................................. 25.6"
Y-AXIS TRAVEL................................. 23.6"
Z-AXIS TRAVEL................................. 25.6"

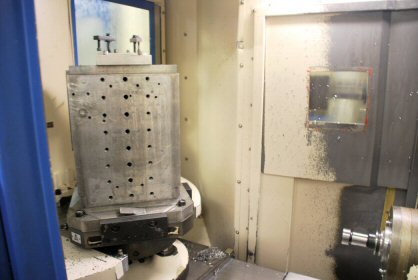

2 PALLETS..................................... 15.75" X 15.75"
(ONE DEGREE INDEXING)
PALLET CHANGE TIME............................ 6 SECONDS
ATC CHIP TO CHIP TIME......................... 4.5 SECONDS
SPINDLE SPEEDS................................ 10,000 RPM
AUTOMATIC TOOLCHANGER......................... 50 POSITIONS
SPINDLE TAPER................................. CAT 40
SPINDLE MOTOR................................. 20 HP

EQUIPPED WITH:

SPINDLE CHILLER
THRU SPINDLE COOLANT

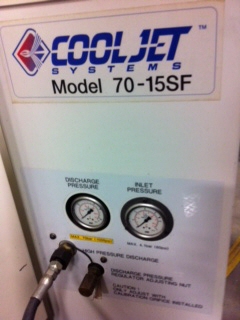

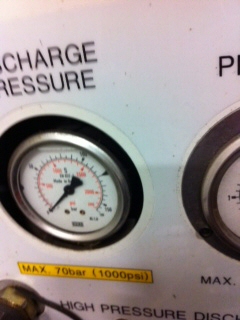

COOLJET SYSTEM MODEL 70-15SF (1000 PSI)
RIGID TAPPING

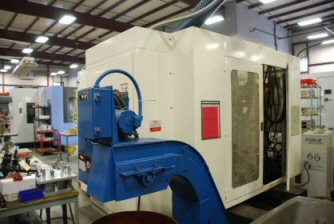

CHIP CONVEYOR AND AUGER
EXPANDED MEMORY

MACHINE IS IN EXCELLENT CONDITION
