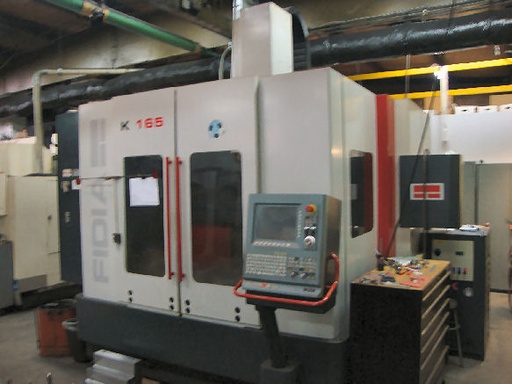

39.37"X, 23.622"Y, 19.685"Z, FIDIA K165,5 AXIS,24 ATC,30,000 RPM,FIDIA M2,2002   Our stock number: 82566

39.37 X, 23.622 Y, 19.685 Z, FIDIA K165,5 AXIS,24 ATC,30,000 RPM,FIDIA M2,2002

Click on picture below for larger version
39.37 X, 23.622 Y, 19.685 Z, FIDIA K165,5 AXIS,24 ATC,30,000 RPM,FIDIA M2,200239.37 X, 23.622 Y, 19.685 Z, FIDIA K165,5 AXIS,24 ATC,30,000 RPM,FIDIA M2,2002


SPECIFICATIONS:

NUMBER OF AXIS........................... 5
X AXIS .................................. 39.370 " / 1,000MM
Y AXIS .................................. 23.622 " / 600MM
Z AXIS .................................. 19.685 " / 500MM
B AXIS .................................. +25 DEG - 25 DEG
B AXIS PITCH ............................ 5 DEG
C AXIS .................................. +180 DEG - 177 DEG
C AXIS .................................. PITCH 3 DEG
LINEAR AXIS FEED
X & Y AXIS ........................... 40 M/MIN (1574.8")
Z AXIS ............................... 30 M/MIN (1181.1")
POSITING ACCURACY ....................... 0.00031" / 0.008MM
MAXIMUM ACCELERATION .................... 393.7"/S2 / 10 M/S2
WORK TABLE .............................. 55.1" l X 32.2" w (140MM X 820MM)
T-SLOTS ................................. 6.2"
MAX LOAD ................................ 2000DaN
ATC ..................................... 24 TOOL MAGAZINE
TOOL MAGAZINE ........................... 20, 42 pOSITIONS
FASTENING THE SPINDLE ................... HSK 50 e
SPINDLE SPEED ........................... 30,000 rpm
SPINDLE POWER ........................... 20 Kw


EQUIPPED WITH:

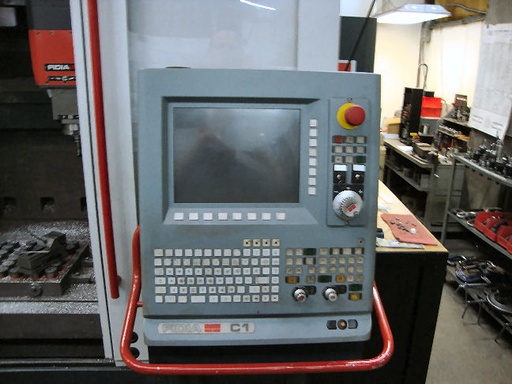

CONTROL: FIDIA M2
New Cost was $300,000

INSPECT UNDER POWER IN EXCELLENT CONDITION
