60"X, 30"Y, 30"Z FADAL 6030,FADAL 88HS CONTROL,RIGID TAPPING, 1996   Our stock number: 82518

60 X, 30 Y, 30 Z FADAL 6030,FADAL 88HS CONTROL,RIGID TAPPING, 1996

Click on picture below for larger version
60 X, 30 Y, 30 Z FADAL 6030,FADAL 88HS CONTROL,RIGID TAPPING, 199660 X, 30 Y, 30 Z FADAL 6030,FADAL 88HS CONTROL,RIGID TAPPING, 199660 X, 30 Y, 30 Z FADAL 6030,FADAL 88HS CONTROL,RIGID TAPPING, 1996
60 X, 30 Y, 30 Z FADAL 6030,FADAL 88HS CONTROL,RIGID TAPPING, 199660 X, 30 Y, 30 Z FADAL 6030,FADAL 88HS CONTROL,RIGID TAPPING, 1996


Travel:X-AXIS.................... 60"
Y-Axis.................... 30"
Z-Axis.................... 30"
Table Size...................... 62.5" x 30"
Spindle Speed................... 10 - 10,000 RPM
Spindle Taper................... Cat 40
Spindle Nose to Table Top....... 5.5" - 35.5"
Spindle Motor................... 22.5 HP
Spindle Torque.................. 220 ft. lbs.
Tools........................... 21
Table Load Capacity............. 4120 lbs.
Rapid Traverse Rates............ 400 IPM
Max Tool Diameter............... 3" / 6"
Max Tool Length................. 15"
Max Tool Weight................. 15 lbs.
Machine Dimensions (L x W x H).. 158" x 103" x 122"
Machine Weight.................. 17,000 lbs.

EQUIPPED WITH;

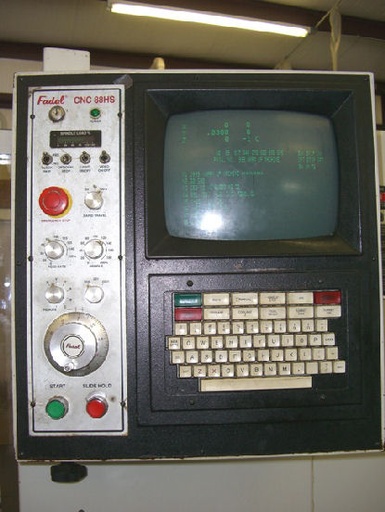

FADAL 88HS CNC CONTROL
12" Monochrome CRT
Graphic Display
Rigid Tapping
Coolant Thru Spindle
Fourth Axis Prewire
High Torque Spindle Motor
High Speed CPU
Blue Operating Condition Light
Full Enclosure
Heavy Duty Box Way Construction
Installed in December 1996
12,580 Power On Hours
3207 Run Hours
