35.43"X, 31.5"Y, 29.53"Z, G & L RAM-630,4 axis,12,000 rpm,cat 50,40 atc, 1995   Our stock number: 81541

35.43 X, 31.5 Y, 29.53 Z, G & L RAM-630,4 axis,12,000 rpm,cat 50,40 atc, 1995

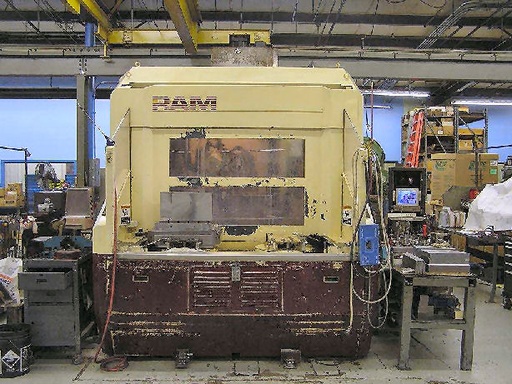

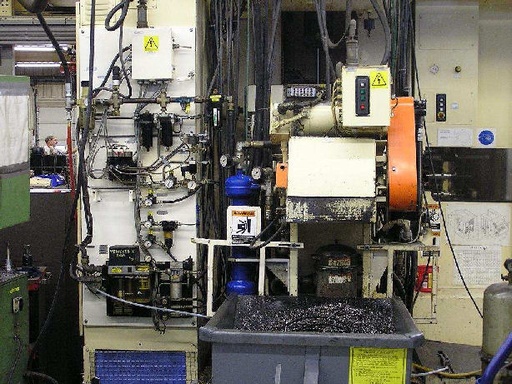

Click on picture below for larger version
35.43 X, 31.5 Y, 29.53 Z, G & L RAM-630,4 axis,12,000 rpm,cat 50,40 atc, 199535.43 X, 31.5 Y, 29.53 Z, G & L RAM-630,4 axis,12,000 rpm,cat 50,40 atc, 199535.43 X, 31.5 Y, 29.53 Z, G & L RAM-630,4 axis,12,000 rpm,cat 50,40 atc, 1995


SPECIFICATIONS:
X-Axis Travel.......................... 35.43"
Y-Axis Travel ......................... 31.50"
Z-Axis Travel ......................... 29.53"
Number of Pallets ..................... 3
Pallet Size ........................... 24.80" x 24.80"
Pallet Indexing ....................... 360.000 Degree
Pallet Load Capacity .................. 2640 Lbs.
Spindle Speeds ........................ 10-12,000 RPM
Spindle Taper ......................... CAT 50
Spindle Drive Motor ................... 35 HP AC
Rapid Traverse Rates (XYZ) ............ 1496 IPM
Max. Tool Diameter (Pockets Full) ..... 4.9"
Max. Tool Diameter (Pockets Empty) .... 10.8"
Max. Tool Weight ...................... 55 Lbs.
Approx. Dimensions (LxWxH) ............ 207"x171"x136"
Approx. Weight ........................ 41,000 Lbs.

EQUIPPED WITH:
G & L Numeripath 8000H 4-Axis CNC Control
(3) 24.80" x 24.80" Pallets
40-Position Automatic Tool Changer
850 PSI Thru-Spindle Coolant
Chip Conveyor
Books and Manuals
