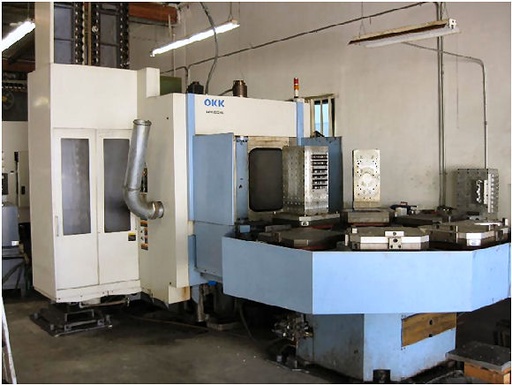

24.5"X, 22.05"Y, 22.05"Z, OKK HM 500,Full 4th axis,thru sp clnt,8 plts, 2001   Our stock number: 81152

24.5 X, 22.05 Y, 22.05 Z, OKK HM 500,Full 4th axis,thru sp clnt,8 plts, 2001

Click on picture below for larger version
24.5 X, 22.05 Y, 22.05 Z, OKK HM 500,Full 4th axis,thru sp clnt,8 plts, 200124.5 X, 22.05 Y, 22.05 Z, OKK HM 500,Full 4th axis,thru sp clnt,8 plts, 200124.5 X, 22.05 Y, 22.05 Z, OKK HM 500,Full 4th axis,thru sp clnt,8 plts, 200124.5 X, 22.05 Y, 22.05 Z, OKK HM 500,Full 4th axis,thru sp clnt,8 plts, 2001



Full 4th Axis (360,000)deg
High Pressure Coolant Thru
10,000 RPM, 180 Pos. ATC

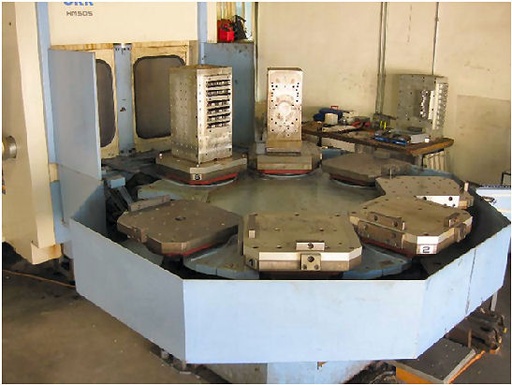

****(8) 20"x20"- (508 x 508mm) Pallet HMC
Pallets (8) 19.69" x 19.69"
Max. Weight on Pallet: 991 lbs

TRAVELS
X-Axis 24.5"
Y-Axis 22.05"
Z-Axis 22.05"

Maximum Spindle Speed 10,000 RPM
Spindle Motor 30 HP
Hi / Low Range
Spindle Taper #40
Tool Changer 180 Position
Table Indexing 360,000 deg. (Full 4th)
Rapid Traverse 1575 IPM

EQUIPPED WITH ::

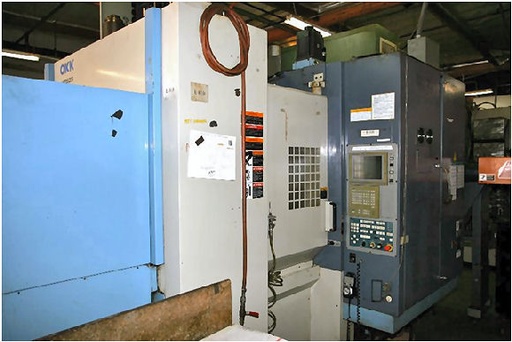

Mitsubishi Neomatic CNC Control
(8) 20" x 20"- 508 x 508mm Pallet Pool
* High Pressure Thru Spindle Coolant
* Full Fourth (360,000 deg) Indexing
* Helical Cutting
* Rigid Tap
* Chip Conveyor
* Trion Electrostatic Air Cleaner

Under power on the West Coast
