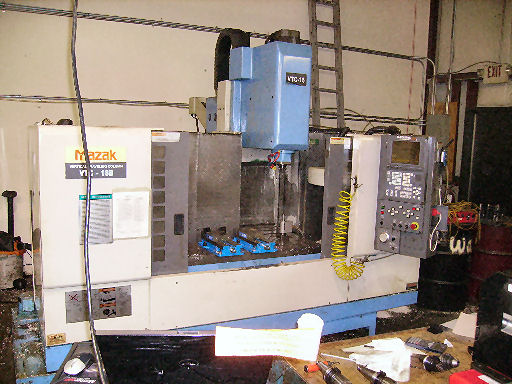

TABLE SIZE.................................. 57.48" X 16.14"
TABLE LOAD CAPACITY......................... 1600 LBS
X AXIS TRAVEL............................... 44.09"
Y AXIS TRAVEL............................... 16.14"
Z AXIS TRAVEL............................... 20.08"
DISTANCE FROM SPINDLE NOSE TO TABLE TOP..... 4.3" - 24.4" mAX
RAPID TRAVERSE RATES (x,y / z).............. 787 ipm / 590 ipm
MAGAZINE CAPACITY........................... 24 atc
CHIP-TO-CHIP TOOL CHANGER tIME.............. 11.4 SEC
MAX. TOOL LENGTH / WEIGHT................... 13.8" / 17.6 LBS.
SPINDLE NOSE................................ # 40
SPINDLE SPEED............................... 40 - 8,000 rpm
MAIN MOTOR.................................. 15 hp
FLOOR SPACE DIMENSIONS (APPROX.)............ 126" X 99" X 106"
WEIGHT...................................... 11,700 LBS ESTIM.
EQUIPPED wITH:
MAZATROL PC-FUSION 640m..10.4" COLOR Crt / RS-232 / FLOPPY
