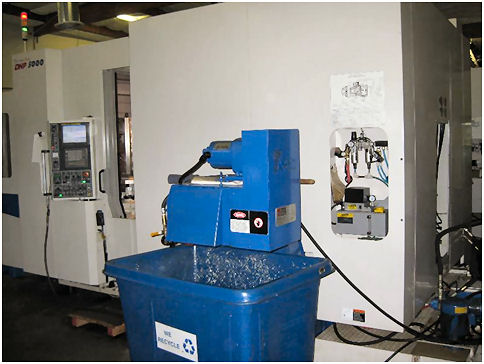

33.4"X, 27.6"Y, 29.5"Z,DAEWOO DHP-5000,Full 4th axis,20" pallets,FANUC 18IM,2006   Our stock number: 78662

33.4 X, 27.6 Y, 29.5 Z,DAEWOO DHP-5000,Full 4th axis,20 pallets,FANUC 18IM,2006

Click on picture below for larger version
33.4 X, 27.6 Y, 29.5 Z,DAEWOO DHP-5000,Full 4th axis,20 pallets,FANUC 18IM,200633.4 X, 27.6 Y, 29.5 Z,DAEWOO DHP-5000,Full 4th axis,20 pallets,FANUC 18IM,200633.4 X, 27.6 Y, 29.5 Z,DAEWOO DHP-5000,Full 4th axis,20 pallets,FANUC 18IM,2006
33.4 X, 27.6 Y, 29.5 Z,DAEWOO DHP-5000,Full 4th axis,20 pallets,FANUC 18IM,200633.4 X, 27.6 Y, 29.5 Z,DAEWOO DHP-5000,Full 4th axis,20 pallets,FANUC 18IM,2006


***** FULL 4TH AXIS CONTOURING *****

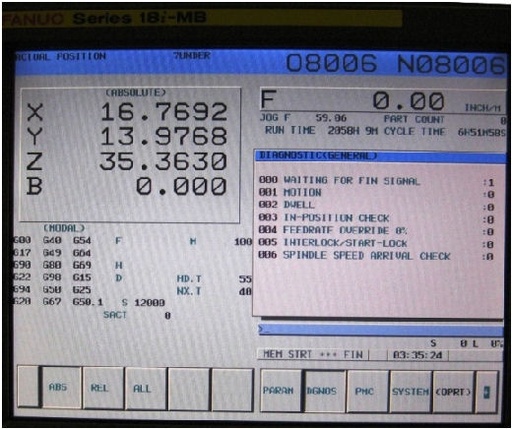

FANUC 18iM CNC CONTROL

X-AXIS TRAVEL........................... 33.4"
Y-AXIS TRAVEL........................... 27.6"
Z-AXIS TRAVEL........................... 29.5"

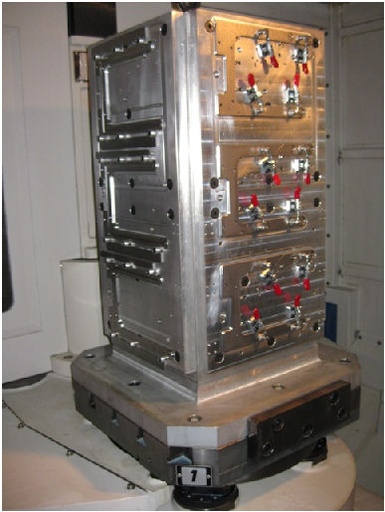

PALLETS................................. 2- 20" X 20" (FULL 4TH AXIS)
TABLE LOAD CAPACITY..................... 1100 LBS
PALLET CHANGE TIME...................... 8 SECONDS
SPINDLE TAPER........................... 40
SPINDLE SPEEDS.......................... 14,000 RPM
SPNIDLE MOTOR........................... 29 HP
AUTOMATIC TOOLCHANGER................... 60 POSITIONS
RAPID TRAVERSE RATE..................... 1890 IPM
MACHINE WEIGHT.......................... 27,500 LBS

EQUIPPED WITH:
SPINDLE TAPER AIR BLOW
AIR THRU SPINDLE SYSTEM
THRU SPINDLE COOLANT
HYDRAULIC OIL COOLER
RIGID TAPPING
CHIP CONVEYOR
ALL AVAILABLE MANUALS
LOTS MORE

MACHINE IS IN BEAUTIFUL CONDITION
