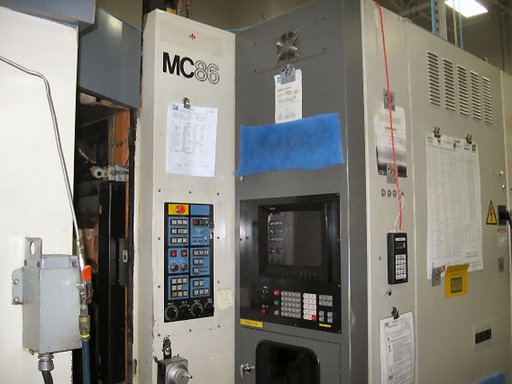

31.9"X, 25"Y, 25"Z, LEBLOND MAKINO MC-86-A60,FANUC 11M, 60 ATC,50 TPR, 1987   Our stock number: 73502

31.9 X, 25 Y, 25 Z, LEBLOND MAKINO MC-86-A60,FANUC 11M, 60 ATC,50 TPR, 1987

Click on picture below for larger version
31.9 X, 25 Y, 25 Z, LEBLOND MAKINO MC-86-A60,FANUC 11M, 60 ATC,50 TPR, 198731.9 X, 25 Y, 25 Z, LEBLOND MAKINO MC-86-A60,FANUC 11M, 60 ATC,50 TPR, 198731.9 X, 25 Y, 25 Z, LEBLOND MAKINO MC-86-A60,FANUC 11M, 60 ATC,50 TPR, 1987
31.9 X, 25 Y, 25 Z, LEBLOND MAKINO MC-86-A60,FANUC 11M, 60 ATC,50 TPR, 198731.9 X, 25 Y, 25 Z, LEBLOND MAKINO MC-86-A60,FANUC 11M, 60 ATC,50 TPR, 1987

***** FIVE AXIS CAPABILITY *****

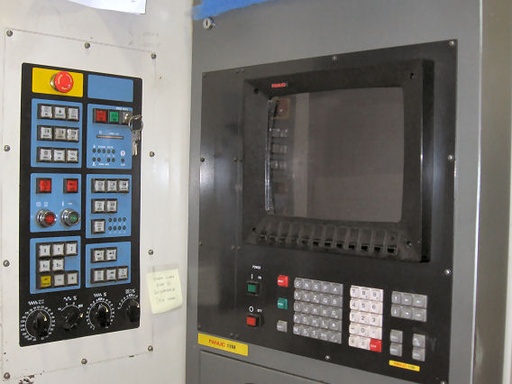

FANUC 11M CNC CONTROL WITH CRT
X-AXIS TRAVEL................... 31.9"
Y-AXIS TRAVEL................... 25"
Z-AXIS TRAVEL................... 25"
PALLETS......................... SINGLE PALLET 24.8" X 24.8"360,000 POS.
FULL CONTOURING
TSUDAKOMA TABLE INDEXER
RNCK-301-RI - 800 MM........ FULL CONTOURING(360,000 POSITIONS)
SPINDLE TAPER................... CAT 50

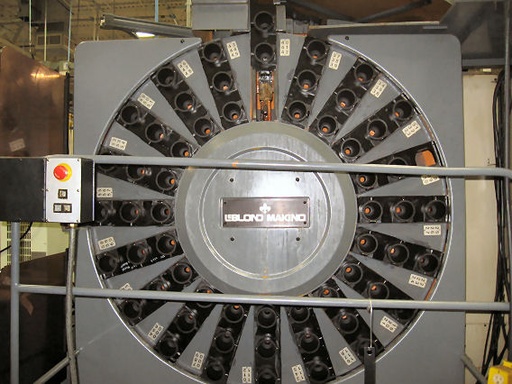

AUTOMATIC TOOLCHANGER........... 60 POSITIONS
SPINDLE MOTOR................... 20/15 HP
SPINDLE CENTER TO TABLE TOP..... 3.9" TO 28.9"
SPINDLE NOSE TO PALLET CENTER... 7.9" TO 32.8"

EQUIPPED WITH:

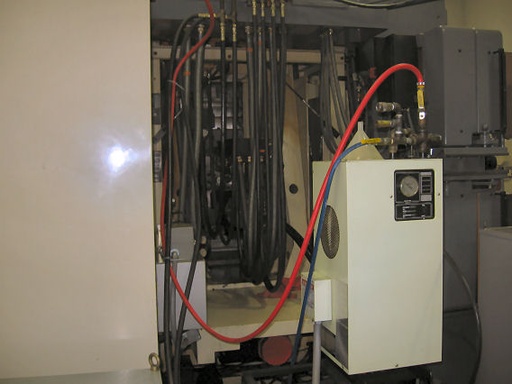

SPINDLE CHILLER
COOLANT THRU SPINDLE
TOOLING PACKAGE
13,500 HOURS ON MACHINE

INSPECT UNDER POWER IN EXCELLENT CONDITION IN A MIDWEST PLANT
