27.95"X, 25.59"Y, 25.59"Z, MAZAK H-500/50,40ATC,50 TPR,5000 RPM,M-32 CNC, 1989   Our stock number: 73445

27.95 X, 25.59 Y, 25.59 Z, MAZAK H-500/50,40ATC,50 TPR,5000 RPM,M-32 CNC, 1989

Click on picture below for larger version
27.95 X, 25.59 Y, 25.59 Z, MAZAK H-500/50,40ATC,50 TPR,5000 RPM,M-32 CNC, 198927.95 X, 25.59 Y, 25.59 Z, MAZAK H-500/50,40ATC,50 TPR,5000 RPM,M-32 CNC, 198927.95 X, 25.59 Y, 25.59 Z, MAZAK H-500/50,40ATC,50 TPR,5000 RPM,M-32 CNC, 1989
27.95 X, 25.59 Y, 25.59 Z, MAZAK H-500/50,40ATC,50 TPR,5000 RPM,M-32 CNC, 198927.95 X, 25.59 Y, 25.59 Z, MAZAK H-500/50,40ATC,50 TPR,5000 RPM,M-32 CNC, 198927.95 X, 25.59 Y, 25.59 Z, MAZAK H-500/50,40ATC,50 TPR,5000 RPM,M-32 CNC, 1989

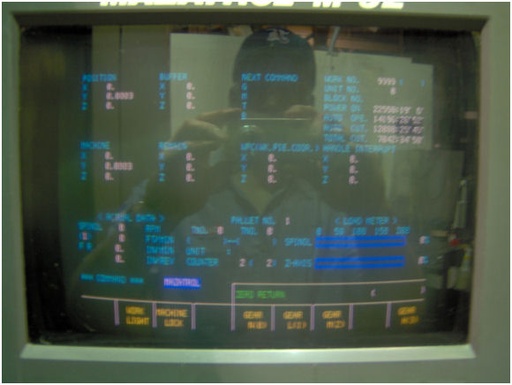

MAZATOL M-32 CNC CONTROL WITH CRT

X-AXIS TRAVEL......................... 27.95"
Y-AXIS TRAVEL......................... 25.59"
Z-AXIS TRAVEL......................... 25.59"
SPINDLE MOTOR......................... 15 HP
SPINDLE TAPER......................... 50
SPINDLE SPEEDS........................ 22-5000 RPM

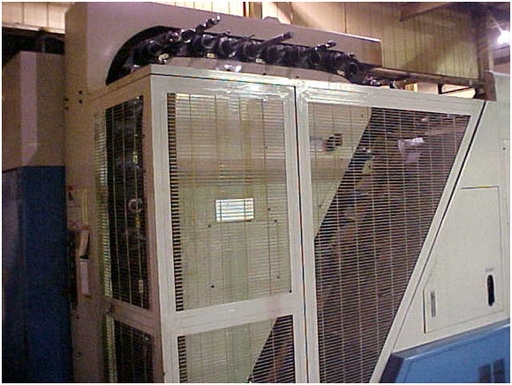

AUTOMATIC TOOLCHANGER................. 40 POSITIONS

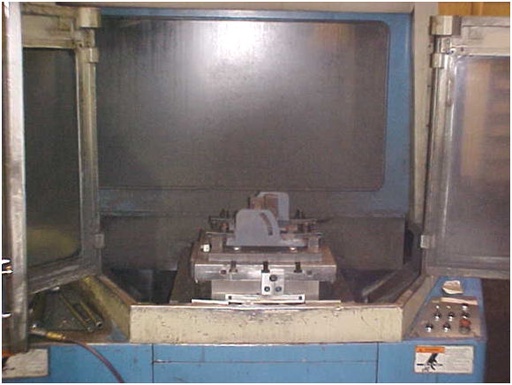

PALLETS SIZE.......................... 2- 20" X 20" (1 DEGREE INDEXING)
RAPID TRAVERSE RATE................... 950 IPM

EQUIPPED WITH;

60 PSI COOLANT THRU SPINDLE
RIGID TAPPING
AUTO CUT TIME........ 12,080 HRS
TOTAL CUT TIME....... 7,042 HRS
FOOT PRINT........... 105" X 197"

MACHINE IS IN EXCELLENT CONDITION UNDER POWER IN THE MIDWEST
