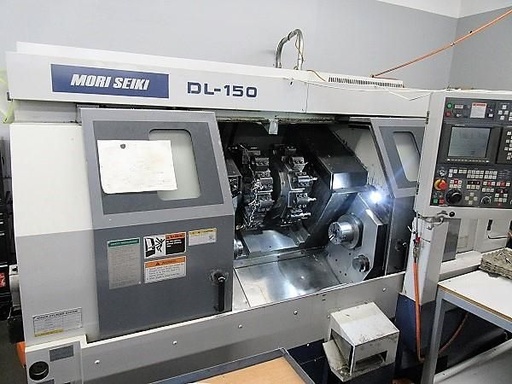

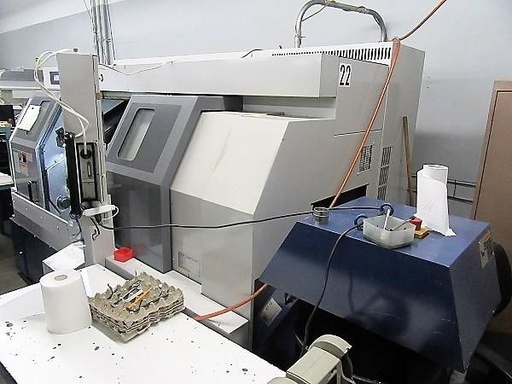

MORI SEIKI DL-150, MORI MSC518, 6"Chk,6 AXIS,5000 RPML,12 TOOL TURRETS, 1999   Our stock number: 93641

MORI SEIKI DL-150, MORI MSC518, 6 Chk,6 AXIS,5000 RPML,12 TOOL TURRETS, 1999

Click on picture below for larger version
MORI SEIKI DL-150, MORI MSC518, 6 Chk,6 AXIS,5000 RPML,12 TOOL TURRETS, 1999MORI SEIKI DL-150, MORI MSC518, 6 Chk,6 AXIS,5000 RPML,12 TOOL TURRETS, 1999MORI SEIKI DL-150, MORI MSC518, 6 Chk,6 AXIS,5000 RPML,12 TOOL TURRETS, 1999


SPECIFICATION-DESCRIPTION

MAX. SWING OVER BED.................... 11"
MAXIMUM TURNING DIAMETER (EACH sPINDLE) 7.8"
MAXIMUM TURNING LENGTH (EACH sPINDLE) . 7.8"
STANDARD CHUCK SIZE.................... 6"
CROSS TRAVEL TURRET 1 (x1-aXIS) ....... 9.3"
LONGITUDINAL TRAVEL TURRET 1 (z1-aXIS). 9.8"
CROSS TRAVEL TURRET (x2-aXIS).......... 9.3"
LONGITUDINAL TRAVEL TURRET 2 (z2-aXIS). 9.8"
HEADSTOCK 2 TRAVEL (w1-aXIS)........... 30.9"
RAPID TRAVERSE RATE (x1, x2 aXES)...... 709 ipm
RAPID TRAVERSE RATE (z1-aXIS).......... 945 ipm
RAPID TRAVERSE RATE (z2-aXIS).......... 1181 ipm
NUMBER OF TURRETS...................... 2
TOOL POSITIONS......................... 12 EACH TURRET
BAR CAPACITY........................... 1.75"
SPINDLE NOSE........................... a2-5
SPINDLE SPEED RANGE.................... 30-5000 rpm
SPINDLE HORSEPOWER..................... 10 hp
APPROXIMATE MACHINE DIMENSIONS......... 126" X 77" X 70"h
APPROXIMATE MACHINE WEIGHT............. 12,320 LBS

EQUIPPED WITH:

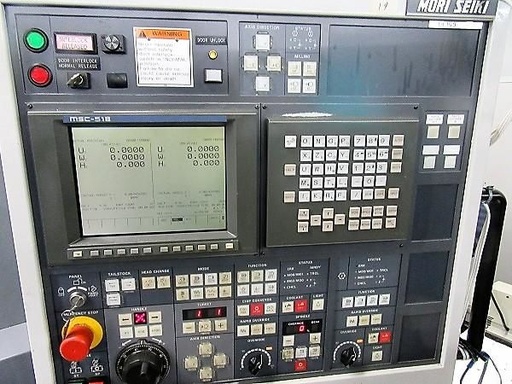

MORI MSC518 cnc CONTROL. (2) 10 hp OPPOSED SPINDLES. (2) 12 POSITION TURRETS.

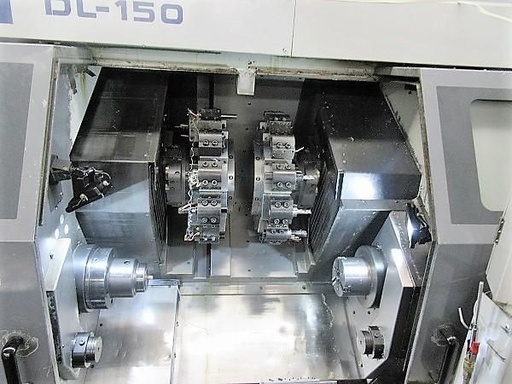

LIVE MILLING BOTH TURRETS , MISC. TOOL HOLDERS, CHIP CONVEYOR, TWIN WORK

LIGHTS, COOLANT SYSTEM, CHUCK, COLLET CHUCK

INSPECT UNDER POWER IN A CALIFORNIA PLANT
