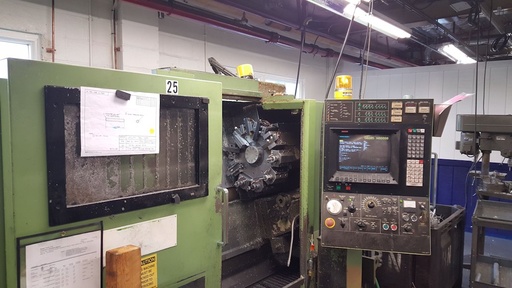

DAINICHI BX-45, FANUC 10TF, 8"Chk,2 1/2"BORE,10 TOOL TURRET,3500 RPM,CHIP CONV   Our stock number: 92618

DAINICHI BX-45, FANUC 10TF, 8 Chk,2 1/2 BORE,10 TOOL TURRET,3500 RPM,CHIP CONV

Click on picture below for larger version
DAINICHI BX-45, FANUC 10TF, 8 Chk,2 1/2 BORE,10 TOOL TURRET,3500 RPM,CHIP CONVDAINICHI BX-45, FANUC 10TF, 8 Chk,2 1/2 BORE,10 TOOL TURRET,3500 RPM,CHIP CONVDAINICHI BX-45, FANUC 10TF, 8 Chk,2 1/2 BORE,10 TOOL TURRET,3500 RPM,CHIP CONVDAINICHI BX-45, FANUC 10TF, 8 Chk,2 1/2 BORE,10 TOOL TURRET,3500 RPM,CHIP CONV

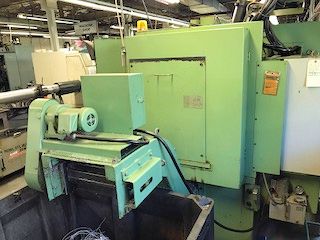

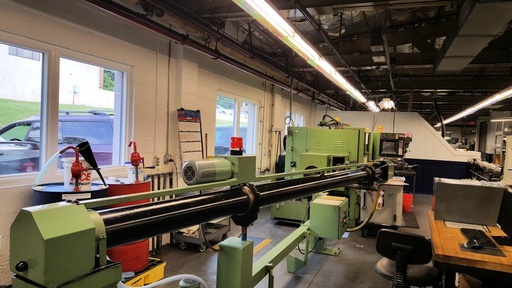

***** FORKHARDT BAR FEED INCLUDED ******

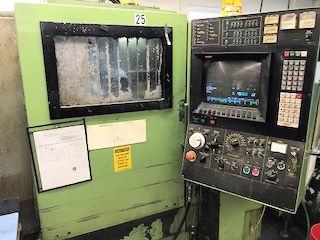

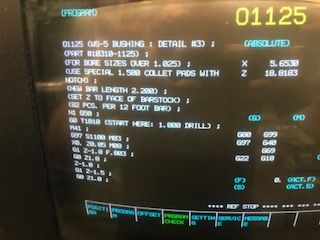

Fanuc CNC Control.
8" CHUCK
Tool Holders
2.5" Spindle Bore
Hydraulic Foot Operated Tailstock.
Chip Conveyor.
Rigid Construction
Coolant Tank.

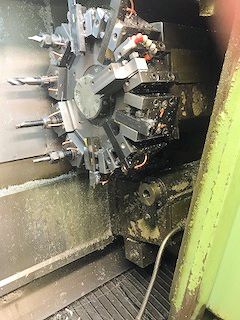

10 - Station Turret.

SPECIFICATIONS:

Turning Diameter: 15.00"

Turning Length: 24.00"

X-Axis Travel: 6.50"

Y-Axis Travel: 24.00"

Bar Working Diameter: 2.55"

Spindle Speeds: 3,500 RPM

Spindle Motor: 11/15Kw

Weight : 12000lbs approx.

EXCELLENT RUNNING CONDITION IN A NORTHEAST PLANT
