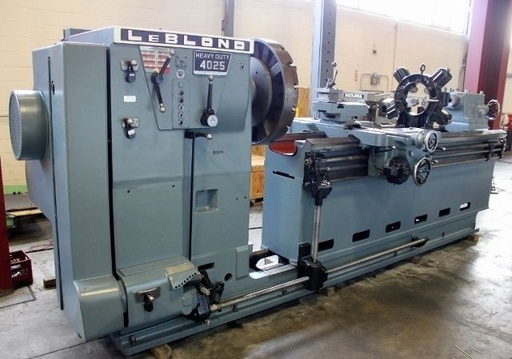

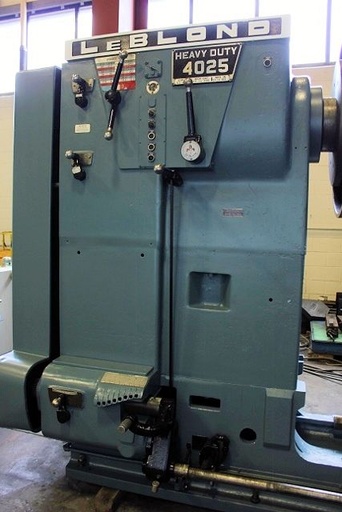

34 1/2" x 130" cc, LEBLOND 4025 NK,TAILSTOCK, 38" CHUCK,25 HP, 1961   Our stock number: 90842

34 1/2 x 130 cc, LEBLOND 4025 NK,TAILSTOCK, 38 CHUCK,25 HP, 1961

Click on picture below for larger version
34 1/2 x 130 cc, LEBLOND 4025 NK,TAILSTOCK, 38 CHUCK,25 HP, 196134 1/2 x 130 cc, LEBLOND 4025 NK,TAILSTOCK, 38 CHUCK,25 HP, 196134 1/2 x 130 cc, LEBLOND 4025 NK,TAILSTOCK, 38 CHUCK,25 HP, 196134 1/2 x 130 cc, LEBLOND 4025 NK,TAILSTOCK, 38 CHUCK,25 HP, 1961
34 1/2 x 130 cc, LEBLOND 4025 NK,TAILSTOCK, 38 CHUCK,25 HP, 196134 1/2 x 130 cc, LEBLOND 4025 NK,TAILSTOCK, 38 CHUCK,25 HP, 196134 1/2 x 130 cc, LEBLOND 4025 NK,TAILSTOCK, 38 CHUCK,25 HP, 1961


SPECIFICATIONS:

Swing over bed and carriage wings.................... 34 1/2"
Swing over cross slide............................... 23 1/2"
Swing over gap....................................... 130"
Distance between centers, bed closed................. 132
Distance between centers, bed opened................. 216
(36) Spindle speeds, in 3 ranges..................... 4.5 TO 500 RPM
Spindle nose, American Standard, size................ A1-11"
Spindle bore......................................... 3 1/16"
Headstock and tailstock spindle center taper......... #6 MORSE
(48) Feeds, longitudinal............................. .004" TO 250 IPR
(48) Threads......................................... 3/4 TO 46 TPI
Tailstock spindle travel............................. 18"
Tailstock spindle diameter........................... 6 1/2"

EQUIPPED WITH:

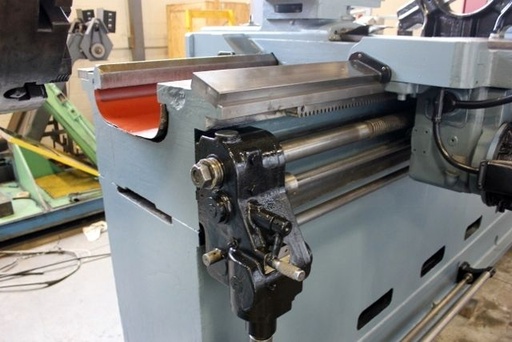

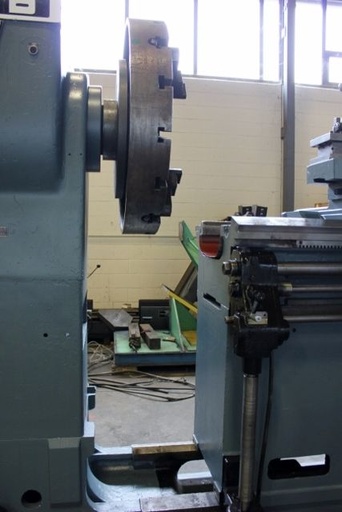

Power operated sliding bed for increased swing and center distance

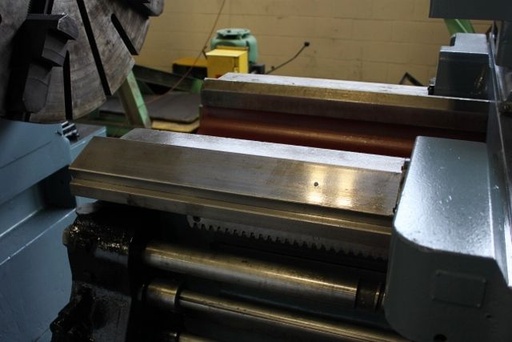

Hardened and ground steel bed ways on upper bed and cross slide ways
Four-directional power rapid traverse

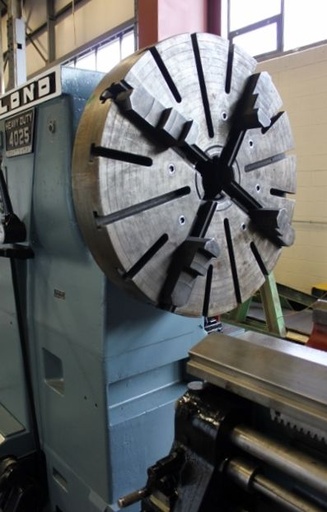

38" Diameter four-jaw chuck with reversible jaws
25" Diameter face plate

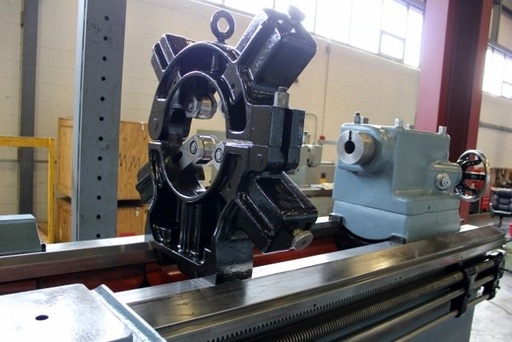

15" Diameter capacity four-point roller-type steady rest

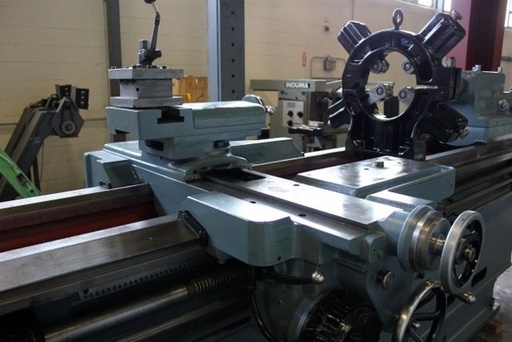

Square toolpost
25 H.P. spindle drive motor and electrical controls
Machine is wired for 440 volt operation.

Approximate Weight: 50,000 Lbs.

Approximate Floor Space with Bed Closed: 242" L-R x 102" F-B x 114" H

Location: F.O.B. Truck, Hauppauge - Long Island, NY
