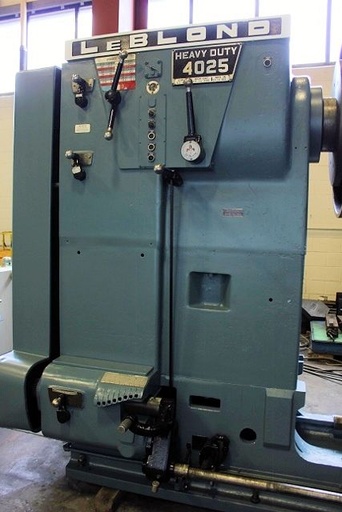

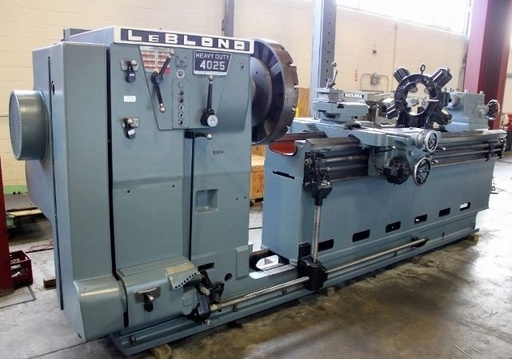

34 1/2"/130" x 132"/216"cc, LEBLOND MODEL 4025NK,TAILSTOCK,38" CHUCK, 1961   Our stock number: 90841

34 1/2 /130 x 132 /216 cc, LEBLOND MODEL 4025NK,TAILSTOCK,38 CHUCK, 1961

Click on picture below for larger version
34 1/2 /130 x 132 /216 cc, LEBLOND MODEL 4025NK,TAILSTOCK,38 CHUCK, 196134 1/2 /130 x 132 /216 cc, LEBLOND MODEL 4025NK,TAILSTOCK,38 CHUCK, 196134 1/2 /130 x 132 /216 cc, LEBLOND MODEL 4025NK,TAILSTOCK,38 CHUCK, 196134 1/2 /130 x 132 /216 cc, LEBLOND MODEL 4025NK,TAILSTOCK,38 CHUCK, 1961
34 1/2 /130 x 132 /216 cc, LEBLOND MODEL 4025NK,TAILSTOCK,38 CHUCK, 196134 1/2 /130 x 132 /216 cc, LEBLOND MODEL 4025NK,TAILSTOCK,38 CHUCK, 196134 1/2 /130 x 132 /216 cc, LEBLOND MODEL 4025NK,TAILSTOCK,38 CHUCK, 196134 1/2 /130 x 132 /216 cc, LEBLOND MODEL 4025NK,TAILSTOCK,38 CHUCK, 1961

PRICE REDUCTION ***** PRICE REDUCTION ******

EXCELLENT CONDITION

SPECIFICATIONS:

Swing over bed and carriage wings................... 34 1/2"

Swing over cross slide.............................. 23 1/2"
Swing over gap...................................... 130"

Distance between centers, bed closed................ 132"
Distance between centers, bed opened................ 216
(36) Spindle speeds, in 3 ranges.................... 4.5 to 500 RPM
Spindle nose, American Standard, size............... A1-11
Spindle bore........................................ 3 1/16"
Headstock and tailstock spindle center taper........ #6 MORSE
(48) Feeds, longitudinal............................ .004 TO .250 I P R
(48) Threads........................................ 3.4 TO 46 TPI
Tailstock spindle travel............................ 18"
Tailstock spindle diameter.......................... 6 1/2"

Equipped With:
Power operated sliding bed for increased swing and center distance

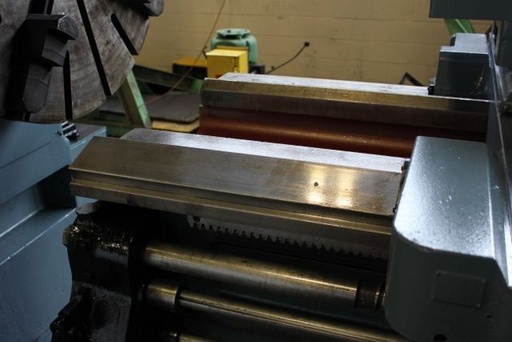

Hardened and ground steel bed ways on upper bed and cross slide ways
Four-directional power rapid traverse

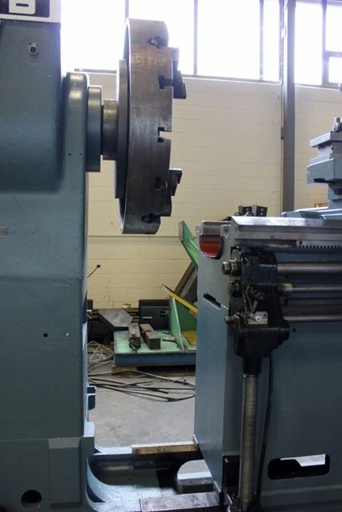

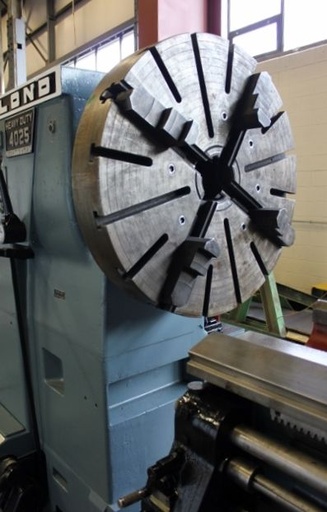

38" Diameter four-jaw chuck with reversible jaws
25" Diameter face plate

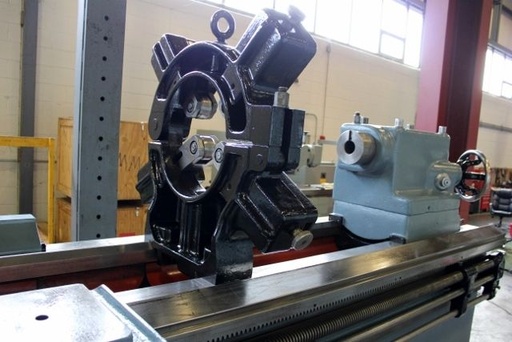

15" Diameter capacity four-point roller-type steady rest

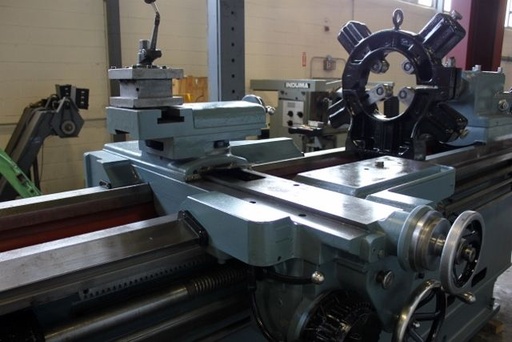

Square toolpost
25 H.P. spindle drive motor and electrical controls
Machine is wired for 440 volt operation.

Approximate Weight: 50,000 Lbs.

Approximate Floor Space with Bed Closed: 242" L-R x 102" F-B x 114" H

Location: F.O.B. Truck, Hauppauge - Long Island, NY
