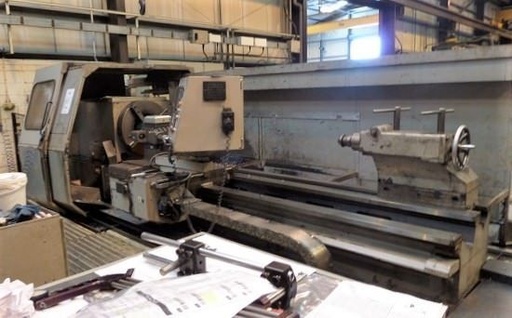

34" x 118" BINNS & BERRY No. 90-850,14.5" SPINDLE HOLE,FANUC OT CNC, 550 RPM   Our stock number: 90505

34 x 118 BINNS & BERRY No. 90-850,14.5 SPINDLE HOLE,FANUC OT CNC, 550 RPM

Click on picture below for larger version
34 x 118 BINNS & BERRY No. 90-850,14.5 SPINDLE HOLE,FANUC OT CNC, 550 RPM34 x 118 BINNS & BERRY No. 90-850,14.5 SPINDLE HOLE,FANUC OT CNC, 550 RPM34 x 118 BINNS & BERRY No. 90-850,14.5 SPINDLE HOLE,FANUC OT CNC, 550 RPM
34 x 118 BINNS & BERRY No. 90-850,14.5 SPINDLE HOLE,FANUC OT CNC, 550 RPM34 x 118 BINNS & BERRY No. 90-850,14.5 SPINDLE HOLE,FANUC OT CNC, 550 RPM34 x 118 BINNS & BERRY No. 90-850,14.5 SPINDLE HOLE,FANUC OT CNC, 550 RPM


Specifications:

FEATURES:
Fanuc O-T CNC Control Retrofit In 1998
14.75" Spindle Bore
Front & Rear 4-Jaw Chucks

CAPACITY:
Swing Over Bed 33.46"
Swing Over Saddle 27.55"
Maximum Turning Between Centers 118.11"
Spindle Bore Diameter 14.5"
Spindle Speeds 550 RPM
Max Workpiece Weight (Unsupported) 17,625 Lbs
Max Workpiece Weight (1-Steady) 22,031 Lbs
Tailstock Quill 6 MT
Quill Travel 5.5"

EQUIPPED WITH:
Fanuc O-T CNC Control

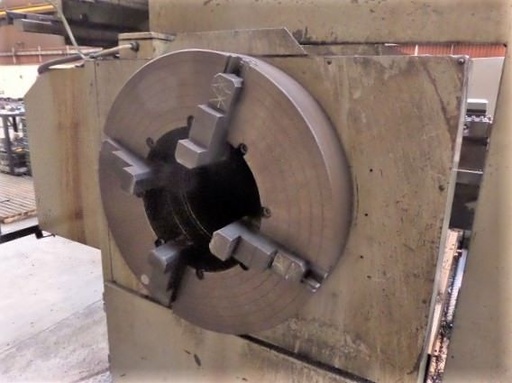

Front & Rear 4-Jaw Chucks

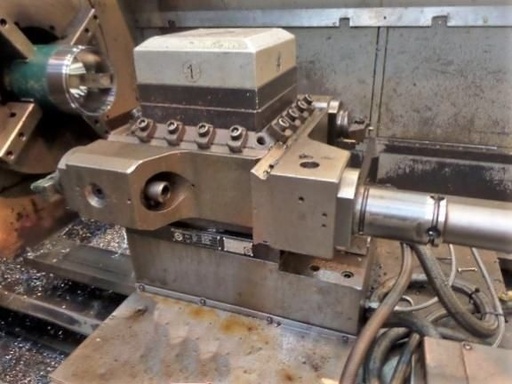

4-Way Auto Indexing Toolpost

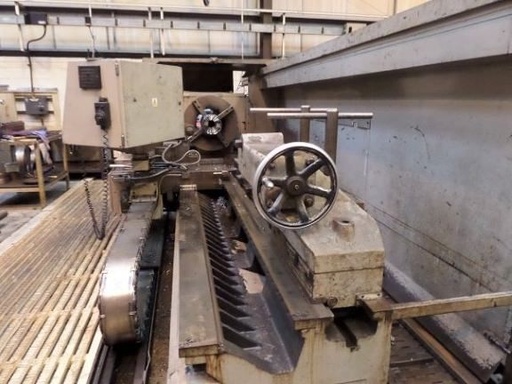

Tailstock

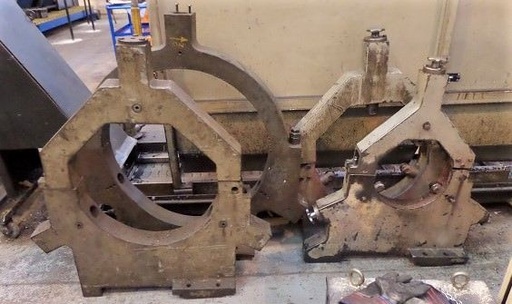

(4) Fixed Steady Rests
Coolant & Guarding

NOTES:
Originally Built 1984 and Retrofit with Fanuc O-T Control By Binns & Berry.
