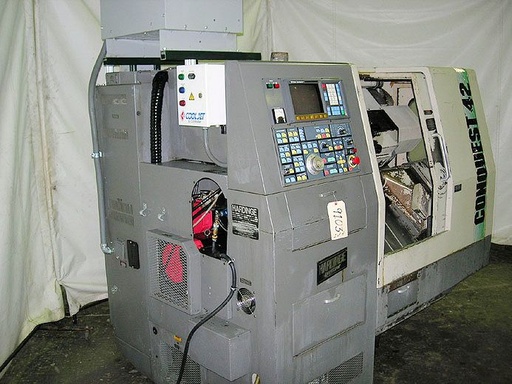

HARDINGE CONQUEST 42 SP, FANUC OT, 6"Chk,LIVE TOOLING, LNS BARFEED, 1990   Our stock number: 89557

HARDINGE CONQUEST 42 SP, FANUC OT, 6 Chk,LIVE TOOLING, LNS BARFEED, 1990

Click on picture below for larger version
HARDINGE CONQUEST 42 SP, FANUC OT, 6 Chk,LIVE TOOLING, LNS BARFEED, 1990HARDINGE CONQUEST 42 SP, FANUC OT, 6 Chk,LIVE TOOLING, LNS BARFEED, 1990HARDINGE CONQUEST 42 SP, FANUC OT, 6 Chk,LIVE TOOLING, LNS BARFEED, 1990

LIVE TOOLING - SUB SPINDLE - LNS BAR FEED

GENERAL SPECIFICATIONS

Spindle speed 5000 RPM
ChuckCollet 16C
Turret main 10 position
Turret live tooling 5 position
Bar capacity 1 5/8"
Spindle drive 10 HP
Spindle nose A2-5

CAPACITY:
Max. swing over upper way cover 19.5"
Max. swing over lower way cover 14.5"
Pre-loaded ball screw diameter 1.25"
Max. square shank tool size 3/4"
Max. round shank tool size 1 1/4"
Max. X-axis traverse rate 472 IPM
Max. Z-axis traverse rate 630 IPM
Max. distance from spindle face to turret face 14"
Turret indexing time (station to station) .2 second
Vertical turret:
Max. X-axis travel 5.45"
Max. Z-axis travel 13.65"
Max. turning diameter with standard
qualified 3/4" square tool (1 1/4" head) 9.1"
Miscellaneous:
Compressed air requirement 70 min. to 90 max PSI 5 to 6SCFM
Coolant tank (capacity) 26 U.S. gallons
Pump rating 32 U.S. GPM
Coolant flow rate 15 - 20 GPM
Approx. weight (base machine) 9,000 lbs
Machine dimensions 86" x 54" x 68"

MOTOR SPECIFICATIONS
10 HP

EQUIPPED WITH
Fanuc O-T control
Collet chuck
Sub spindle
Live tooling
Chip conveyor
Parts catcher
LNS Hydro barfeed tooling
Transformer

EXCELLENT CONDITION ON THE WEST COAST.
