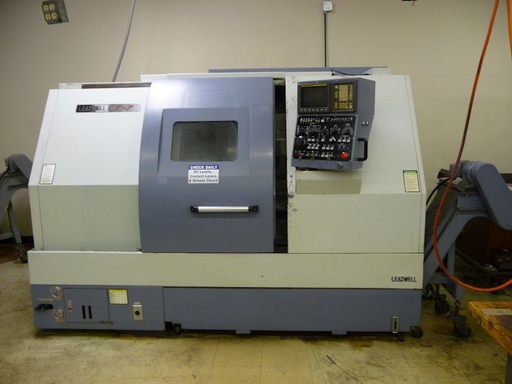

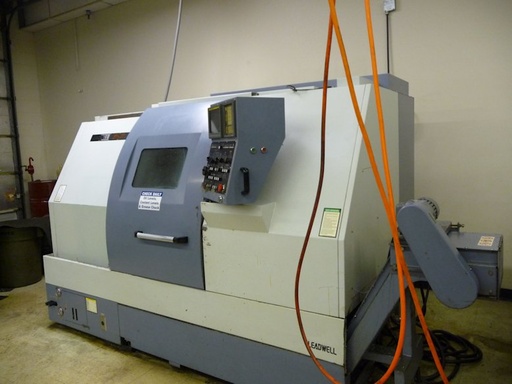

LEADWELL T-7, FANUC OT, 8"Chk, 2",4500 rpm,12 tool turret,20.4"swing, 2004   Our stock number: 85266

LEADWELL T-7, FANUC OT, 8 Chk, 2 ,4500 rpm,12 tool turret,20.4 swing, 2004

Click on picture below for larger version
LEADWELL T-7, FANUC OT, 8 Chk, 2 ,4500 rpm,12 tool turret,20.4 swing, 2004LEADWELL T-7, FANUC OT, 8 Chk, 2 ,4500 rpm,12 tool turret,20.4 swing, 2004LEADWELL T-7, FANUC OT, 8 Chk, 2 ,4500 rpm,12 tool turret,20.4 swing, 2004
LEADWELL T-7, FANUC OT, 8 Chk, 2 ,4500 rpm,12 tool turret,20.4 swing, 2004LEADWELL T-7, FANUC OT, 8 Chk, 2 ,4500 rpm,12 tool turret,20.4 swing, 2004

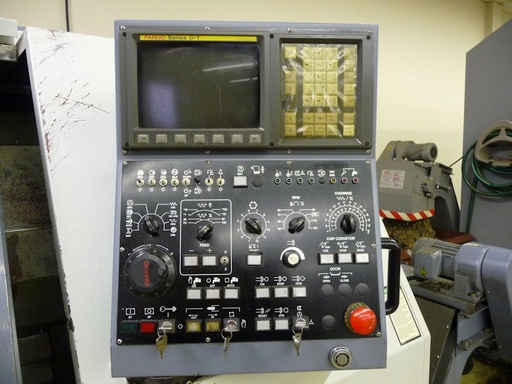

FANUC OT CNC CONTROL WITH CRT
SWING......................... 20.4"
MAX TURNING DIAMETER.......... 13.779"
MAX TURNING LENGTH............ 22"

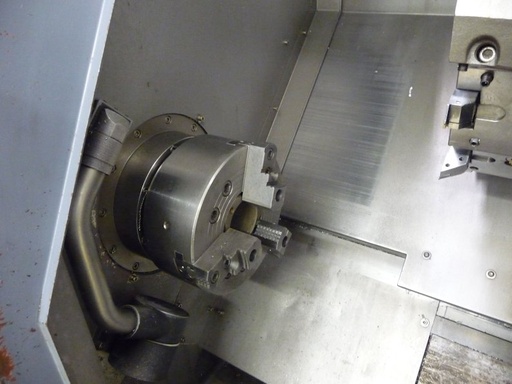

CHUCK SIZE.................... 8"
BAR CAPACITY.................. 2"
SPINDLE NOSE.................. A2-6
SPINDLE SPEEDS................ 45-4500 RPM

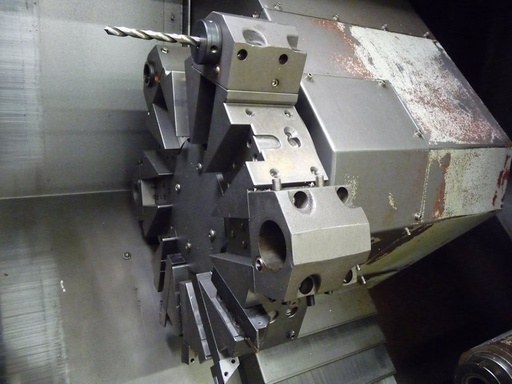

TURRET POSITIONS.............. 12
MACHINE WEIGHT................ 9240 LBS
X-AXIS RAPID TRAVERSE RATE.... 787 IPM
Z-AXIS RAPID TRAVERSE RATE.... 945 IPM

EQUIPPED WITH:

CHIP CONVEYOR
FANUC OT CONTROL
ALL AVAILABLE MANUALS

INSPECT IN BEAUTIFUL CONDITION UNDER POWER IN A PLANT
