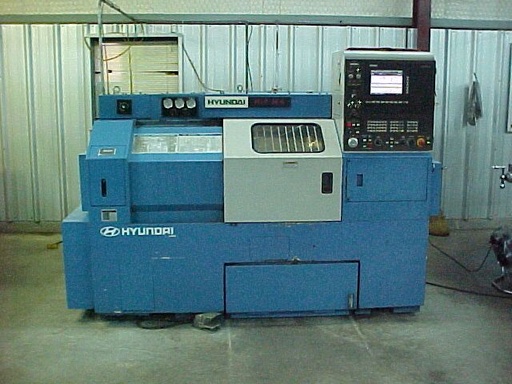

HYUNDAI 18S,SIEMENS 840,8"Chk,17.32" swing,25" cc,3600 rpm,8 tool turret,2001   Our stock number: 83930

HYUNDAI 18S,SIEMENS 840,8 Chk,17.32 swing,25 cc,3600 rpm,8 tool turret,2001

Click on picture below for larger version
HYUNDAI 18S,SIEMENS 840,8 Chk,17.32 swing,25 cc,3600 rpm,8 tool turret,2001HYUNDAI 18S,SIEMENS 840,8 Chk,17.32 swing,25 cc,3600 rpm,8 tool turret,2001HYUNDAI 18S,SIEMENS 840,8 Chk,17.32 swing,25 cc,3600 rpm,8 tool turret,2001HYUNDAI 18S,SIEMENS 840,8 Chk,17.32 swing,25 cc,3600 rpm,8 tool turret,2001
HYUNDAI 18S,SIEMENS 840,8 Chk,17.32 swing,25 cc,3600 rpm,8 tool turret,2001HYUNDAI 18S,SIEMENS 840,8 Chk,17.32 swing,25 cc,3600 rpm,8 tool turret,2001HYUNDAI 18S,SIEMENS 840,8 Chk,17.32 swing,25 cc,3600 rpm,8 tool turret,2001HYUNDAI 18S,SIEMENS 840,8 Chk,17.32 swing,25 cc,3600 rpm,8 tool turret,2001

Maximum swing over bed................... 17.3"
Maximum cutting diameter................. 11"
Maximum cutting length................... 20"
Maximum length between centers........... 25"
Maximum bar capacity..................... 2.8"
Spindle nose............................. A2-8
Spindle bore............................. 3.1"
X-axis travel............................ 7"
Z-axis travel............................ 20"
Rapid traverse rate...................... 1180 IPM

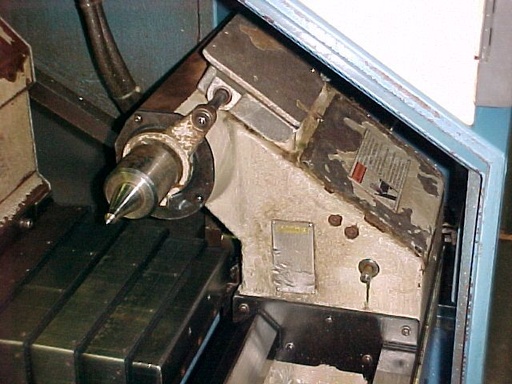

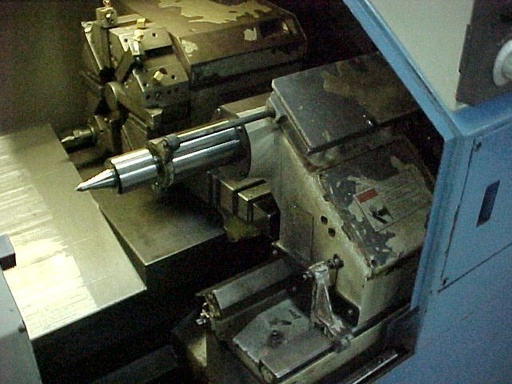

Diameter of tailstock quill.............. 3.1"
Taper of tailstock quill................. #4 MORSE TAPER
Stroke of tailstock quill................ 5.1"
Stroke of tailstock body................. 18.1"
Spindle speeds........................... 36 - 3600 RPM

EQUIPPED WITH:

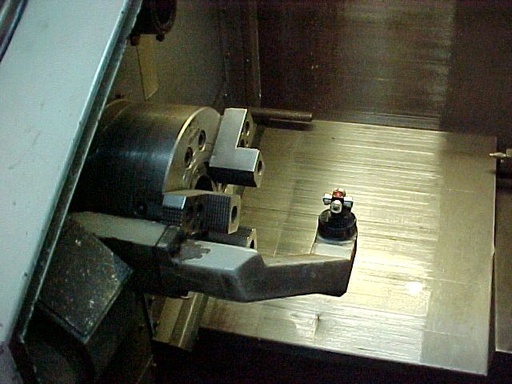

TOOL PRESETTER

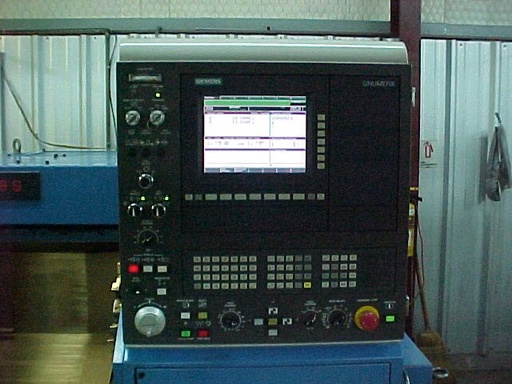

SIEMENS 840D CNC CONTROL WITH CRT

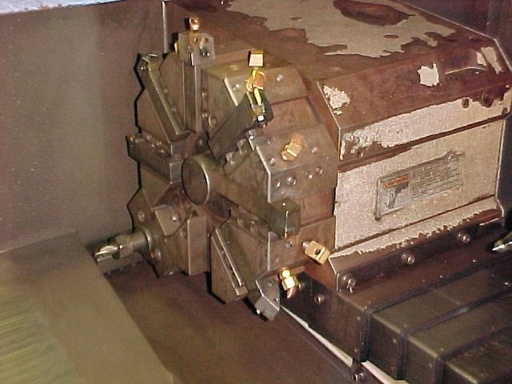

TURRET

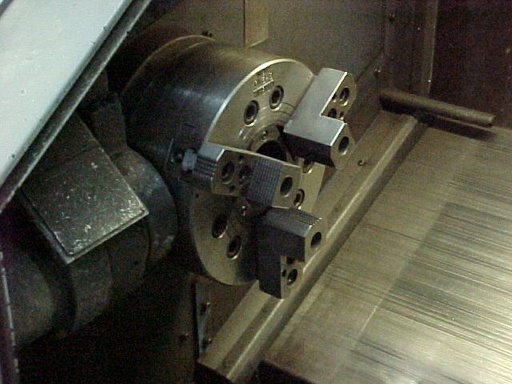

NEW 8" CHUCK
15 HP SPINDLE MOTOR

*** INSPECT IN EXCELLENT CONDITION UNDER POWER IN TEXAS ***
