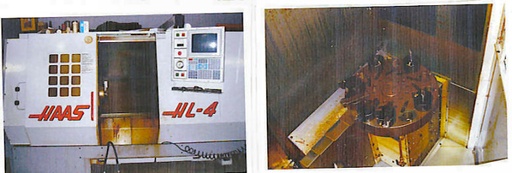

HAAS HL-4, HAAS CNC,10"Chk,2 1/2" BAR,3500 RPM,39"CC,30 HP,TAILSTOCK, 1997   Our stock number: 73868

HAAS HL-4, HAAS CNC,10 Chk,2 1/2 BAR,3500 RPM,39 CC,30 HP,TAILSTOCK, 1997

Click on picture below for larger version
HAAS HL-4, HAAS CNC,10 Chk,2 1/2 BAR,3500 RPM,39 CC,30 HP,TAILSTOCK, 1997HAAS HL-4, HAAS CNC,10 Chk,2 1/2 BAR,3500 RPM,39 CC,30 HP,TAILSTOCK, 1997HAAS HL-4, HAAS CNC,10 Chk,2 1/2 BAR,3500 RPM,39 CC,30 HP,TAILSTOCK, 1997

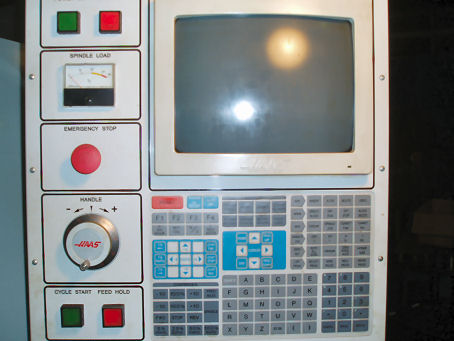

HAAS CNC WITH CRT
CHUCK SIZE....................... 10"
SWING OVER THE FRONT APRON....... 24"
SWING OVER THE CROSS SLIDE....... 9.5"
BAR CAPACITY..................... 2.5"
DISTANCE BETWEEN CENTERS......... 39"
MAX CUTTING DIAMETER............. 14.5"
MAX CUTTING LENGTH............... 34"
MAX RPM.......................... 3500 RPM
SPINDLE MOTOR.................... 30 HP
SPINDLE NOSE..................... A2-6
X-AXIS TRAVEL.................... 11.30"
Z-AXIS TRAVEL.................... 34"
RAPID TRAVERSE RATE.............. 700 IPM

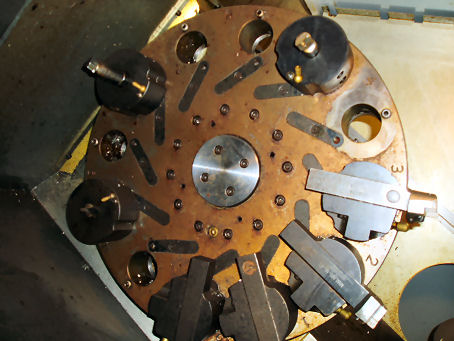

TURRET CONFIGURATION............. 12 POSITIONS
WEIGHT........................... 14,000 LBS

EQUIPPED WITH:

CHIP AUGER
3.5" FLOPPY DISK
TOOL PRESETTER
AC SERVO DRIVES

MACHINE IS IN EXCELLENT CONDITION
HAS NOT BEEN USED TO CUT PARTS IN 6 YEARS
INSPECT IN A NORTHEAST PLANT
