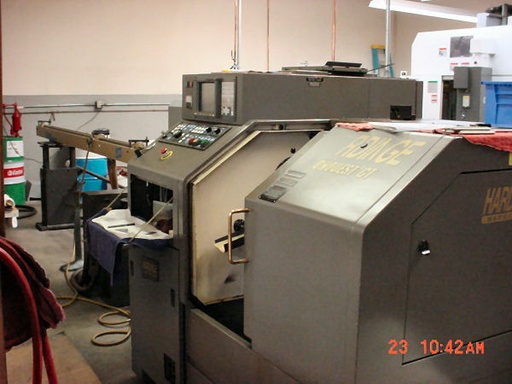

HARDINGE GT-27,FANUC 18T, GANG TOOL LATHE,BAR FEED,6000 RPM, 1998   Our stock number: 48887

HARDINGE GT-27,FANUC 18T, GANG TOOL LATHE,BAR FEED,6000 RPM, 1998

Click on picture below for larger version
HARDINGE GT-27,FANUC 18T, GANG TOOL LATHE,BAR FEED,6000 RPM, 1998HARDINGE GT-27,FANUC 18T, GANG TOOL LATHE,BAR FEED,6000 RPM, 1998HARDINGE GT-27,FANUC 18T, GANG TOOL LATHE,BAR FEED,6000 RPM, 1998HARDINGE GT-27,FANUC 18T, GANG TOOL LATHE,BAR FEED,6000 RPM, 1998

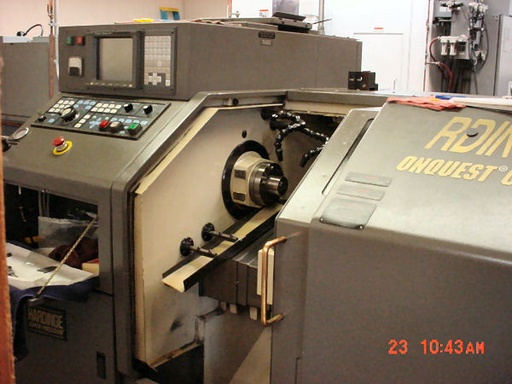

FANUC 18T CONTROL

SPECIFICATIONS:

CAPACITIES:
MAXIMUM DIAMETER BAR CAPACITY................ 1.062"
THREADING DIAMETER........................... 9.1"
FIXTURE DIAMETER............................. 6"
SWING OVER WAY COVER......................... 11.76"
SWING OVER TOOLING TOP PLATE................. 2.654"
COLLET SYSTEM................................ 5C
COLLET CLOSER STROKE......................... 0.5"
MAXIMUM ALLOABLE WEIGHT ON SPINLE............ 75 LBS
DISTANCE SPINDLE FACE TO TOP PLATE........... 11.259"
SPINDLE:
SPEED........................................ 6,000 RPM
NOSE......................................... A2-4
MOTOR........................................ 5 HP
TORQUE....................................... 17.4 FT-LB
SPINDLE CENTERING HEIGHT..................... 42.25"
TRAVELS:
X AXIS...................................... 11.968"
Z AXIs...................................... 11.062"
RAPID TRAVERSE RATES
X AXIS...................................... 472 IPM
Z AXIX...................................... 630 IPM

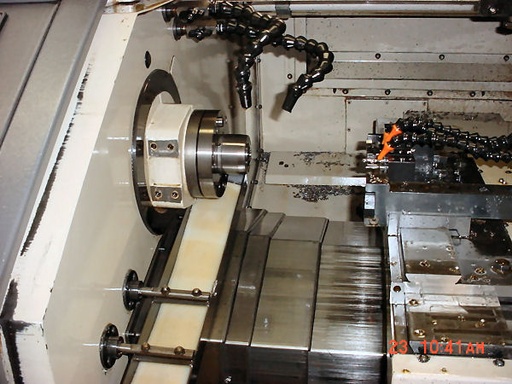

TOOLS (GANG TYPE):
NUMBER OF TOOL POSITIONS.................... PART DEPENDENT
SQUARE SHANK TOOL SIZE (MAXIMUM)............ 0.5"
ROUND SHANK TOOL SIZE (MAXIMUM)............. 0.75"
GENERAL:
ELECTRICAL REQUIREMENTS..................... 230 / 60 / 3
MACHINE DIMENSIONS (L x W x H).............. 70" x 58.7" x 62"
MACHINE WEIGHT (APPROXIMATE)................ 5,700 LBS

EQUIPPED WITH:

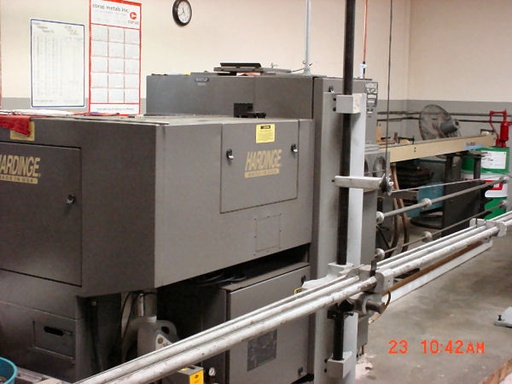

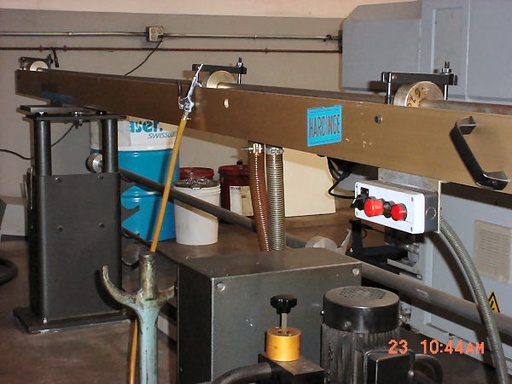

HAROMATIC SINGLE TUBE HYDRAUILIC BAR FEED
PARTS CATCHERPARTS COUNTER

IN A WEST COAST PLANT ***
