16" x 48" ELB SWBE 012 NPC-K,16"X5"X2" GRINDING WHEEL, INCREMENTAL DOWN, 1989   Our stock number: 93123

16 x 48 ELB SWBE 012 NPC-K,16 X5 X2 GRINDING WHEEL, INCREMENTAL DOWN, 1989

Click on picture below for larger version
16 x 48 ELB SWBE 012 NPC-K,16 X5 X2 GRINDING WHEEL, INCREMENTAL DOWN, 198916 x 48 ELB SWBE 012 NPC-K,16 X5 X2 GRINDING WHEEL, INCREMENTAL DOWN, 198916 x 48 ELB SWBE 012 NPC-K,16 X5 X2 GRINDING WHEEL, INCREMENTAL DOWN, 198916 x 48 ELB SWBE 012 NPC-K,16 X5 X2 GRINDING WHEEL, INCREMENTAL DOWN, 1989


WIDTH X LENGTH GROUND (NOMINAL CAP.) ......... 16" X 48"
DISTANCE SPINDLE CENTER TO TOP OF CHUCK ...... 24"
MAXIMUM TABLE TRAVEL ......................... 54"
MAXIMUM CROSS FEED TRAVEL .................... 18"
STANDARD GRINDING WHEEL ...................... 16"D X 2"W X 5"B
APPROX. MACHINE WEIGHT ....................... 12,000 LBS.

EQUIPPED WITH:

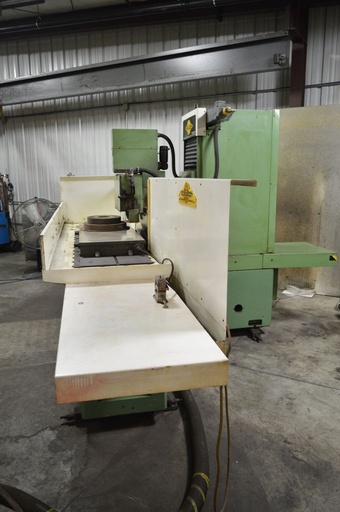

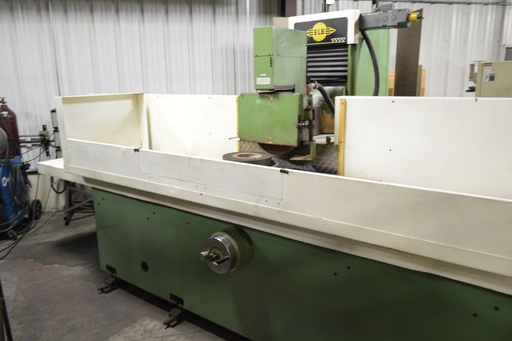

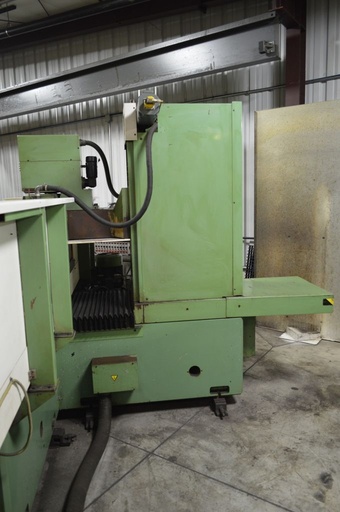

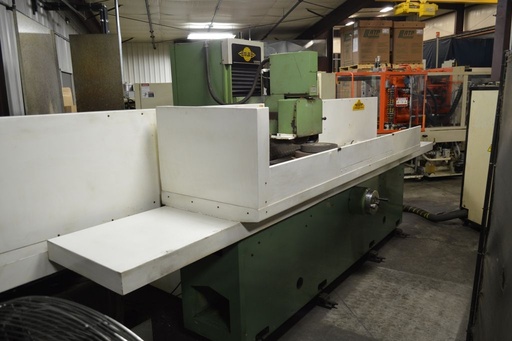

COLUMN TYPE GRINDER
FULLY AUTOMATIC OPERATION FOR X, Y & Z AXES

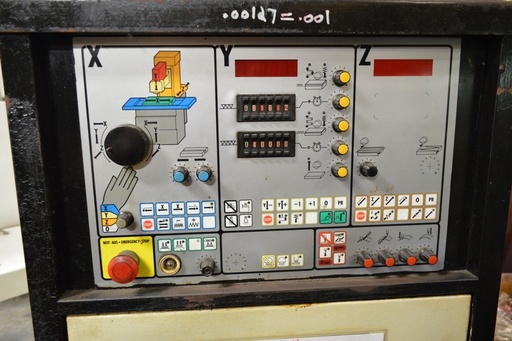

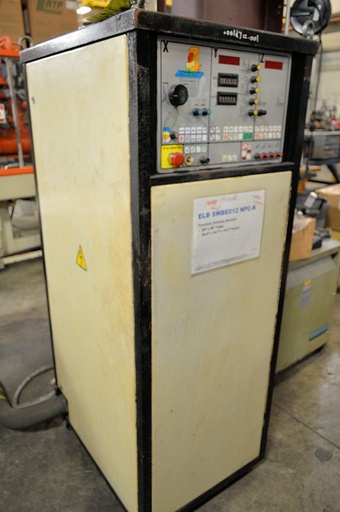

DIGITAL CONTROL FOR VERTICAL & CROSS AXES
POWER OTW WHEEL DRESSER

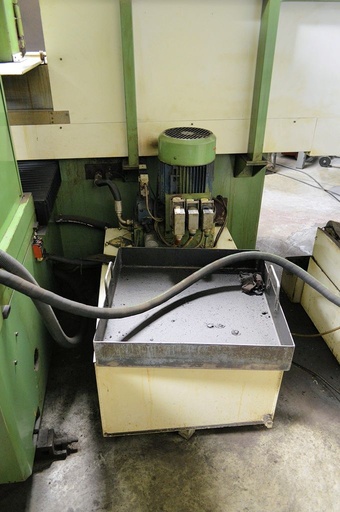

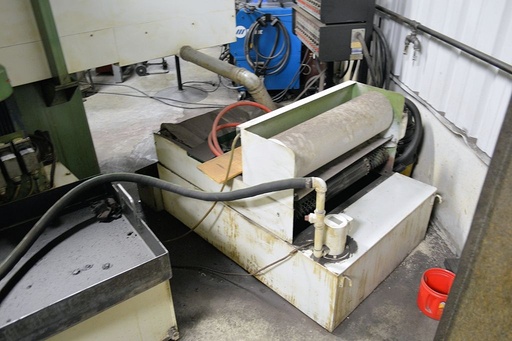

COMPLETE COOLANT SYSTEM WITH PAPER FILTRATION FOR "WET" GRINDING
16" X 48" ELECTRO-MAGNETIC CHUCK WITH ELB VARIABLE CHUCK CONTROL
10 H.P. SUPER-PRECISION SPINDLE DRIVE
MACHINE IS WIRED PRESENTLY FOR 3/60/230 VOLTS

** INSPECT UNDER POWER IN OUR CUSTOMER'S SHOP (MIDWEST LOCATION) **
