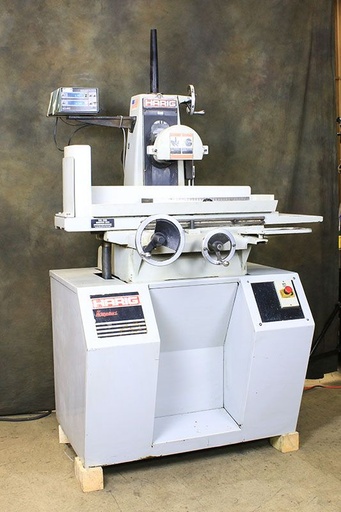

6" x 18" HARIG 618,DRO,HAND FEED,HARD WAYS,WALKER CHUCK,7"GRINDING WHEEL, 1991   Our stock number: 92214

6 x 18 HARIG 618,DRO,HAND FEED,HARD WAYS,WALKER CHUCK,7 GRINDING WHEEL, 1991

Click on picture below for larger version
6 x 18 HARIG 618,DRO,HAND FEED,HARD WAYS,WALKER CHUCK,7 GRINDING WHEEL, 19916 x 18 HARIG 618,DRO,HAND FEED,HARD WAYS,WALKER CHUCK,7 GRINDING WHEEL, 1991

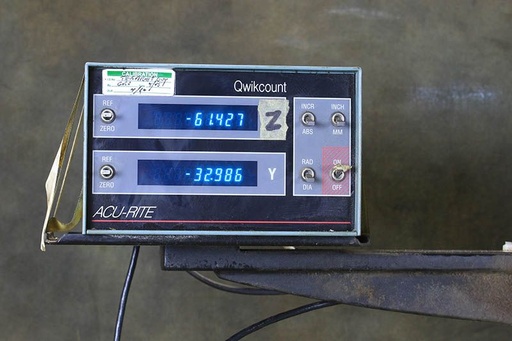

** ACU-RITE QWIKCOUNT TWO AXIS DIGITAL READOUT DISPLAY **

WIDTH & LENGTH GROUND ......................... 6" X 18"
VERTICAL WORKING HEIGHT UNDER 7" WHEEL ........ 11- 3/4"
LONGITUDINAL TABLE TRAVEL ..................... 20"
CROSS TRAVEL .................................. 6- 3/4"
GRINDING WHEEL ................................ 7" X 1/2" X 1-1/4"
MAXIMUM GRINDING WHEEL DIAMETER ............... 8"
ELEVATING HANDWHEEL GRAD. ..................... 0.0001"
CROSS HANDWHEEL GRAD. ......................... 0.001"

FLOOR AREA OPERATING SPACE .................... 69" X 45"
APPROXIMATE WEIGHT ............................ 1,250 LBS

EQUIPPED WITH:
HAND FEEDS
ACU-RITE QWIKCOUNT TWO AXIS DIGITAL READOUT DISPLAY
TOOL STEEL HARD WAYS OPTION

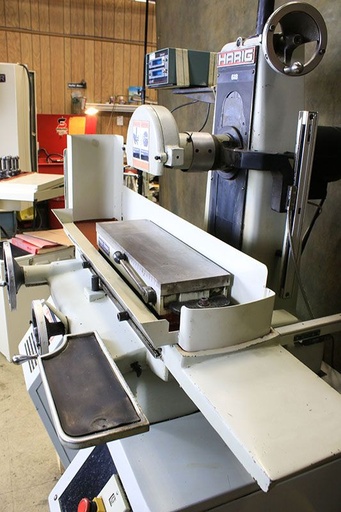

6" X 18" WALKER FINE-DIVISION PERMANENT MAGNETIC CHUCK
AUTOMATIC LUBRICATION SYSTEM
1.5 HP 3/60/230-460 VOLT HARIG SUPER-PRECISION DIRECT
DRIVE CARTRIDGE TYPE SPINDLE
PRESENTLY WIRED FOR 3/60/220 VOLTS

** SUPERB CONDITION & APPEARANCE **
