6 7/8" x 40", STUDER S35,CNC/CRT,GR LENGTH-21 1/4",1670 RPM, 1988   Our stock number: 77044

6 7/8 x 40 , STUDER S35,CNC/CRT,GR LENGTH-21 1/4 ,1670 RPM, 1988

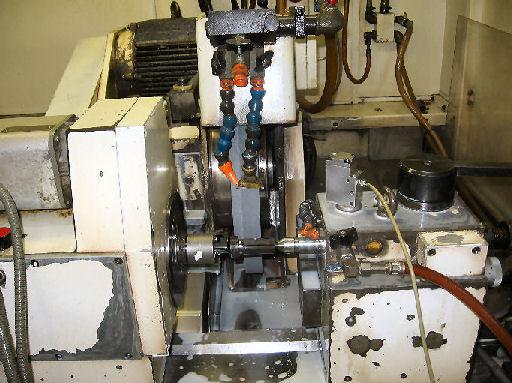

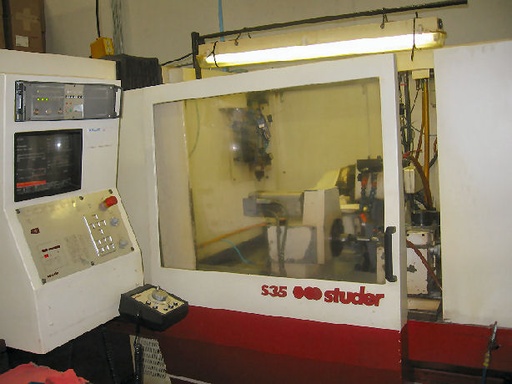

Click on picture below for larger version
6 7/8 x 40 , STUDER S35,CNC/CRT,GR LENGTH-21 1/4 ,1670 RPM, 19886 7/8 x 40 , STUDER S35,CNC/CRT,GR LENGTH-21 1/4 ,1670 RPM, 1988


CENTER HEIGHT.......................... 6 7/8"
CENTER DISTANCE........................ 40"
GRINDING LENGTH MAX.................... 21 1/4"
GRINDING DIAMETER...................... 11 13/16"
Z-AXIS TRAVEL.......................... 25 19/32"
X-AXIS TRAVEL.......................... 10"
INFEED SPEEDS.......................... 0.0003 - 197 IPM
GRINDING WHEEL......................... 20"D X 3 1/4"W X 8" BORE
GRINDING WHEEL SPEED................... 1670 RPM
SWIVEL RANGE........................... (+/-) 8.5 DEGREES
WORKHEAD SPEED RANGE................... 15 - 750
TAPER.................................. MORSE 5
MAX WORKPIECE BETWEEN CENTERS.......... 287 LBS
LIVE GRINDING LOAD..................... 74 FT-LBS
TAILSTOCK BARREL TRAVEL................ 1 13/16"

EQUIPPED WITH:

NO ID ATTACHMENT
DITTEL WHEEL AUTO BALANCE UNIT
2 CRATES OF SPARE PARTS

MACHINE IS IN EXCELLENT CONDITION IN A MIDWEST PLANT
