WASINO MEISTER PRO,FANUC 20-F,18" X 6", 5000 RPM,2 HP, 1998   Our stock number: 67707

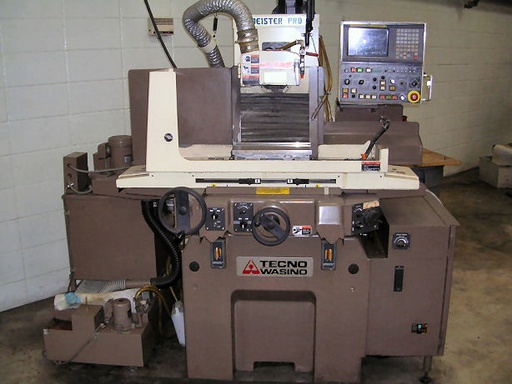

WASINO MEISTER PRO,FANUC 20-F,18 X 6 , 5000 RPM,2 HP, 1998

Click on picture below for larger version
WASINO MEISTER PRO,FANUC 20-F,18 X 6 , 5000 RPM,2 HP, 1998WASINO MEISTER PRO,FANUC 20-F,18 X 6 , 5000 RPM,2 HP, 1998WASINO MEISTER PRO,FANUC 20-F,18 X 6 , 5000 RPM,2 HP, 1998

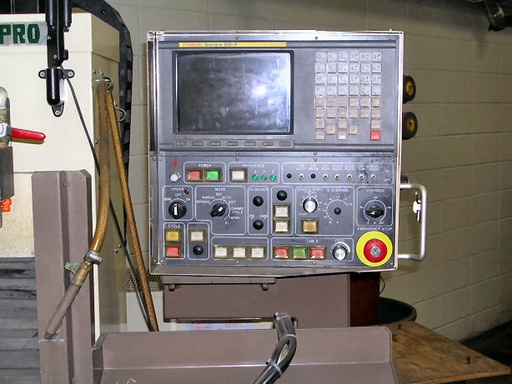

FANUC 20-F CNC CONTROL WITH CRT

TABLE WORKING SURFACE............. 17 3/4" X 5 7/8"
MAX TABLE LONG TRAVEL............. 18 7/8"
MAX TABLE TO WHEEL................ 5 1/8" - 15 3/4"
LONGITUDINAL FEED RATE............ 3.3 - 164 FPM
WHEELHEAD VERTICAL AUTOMACTIC FEED .01" X 19..7"
CROSS FEED, AUTOMATIC............. 2 - 59
CROSS FEED INCREMENTS............. .01" X 19.7"
WHEEL SIZE........................ 8" X 1" X 1 1/4"
TABLE LOAD CAPACITY............... 154 LBS
SPINDLE MOTOR..................... 2 HP
VARIABLE WHEEL SPEED TO........... 5000 RPM

EQUIPPED WITH:

KENETSU CROSS POLE ELECTROMAGNETIC CHUCK

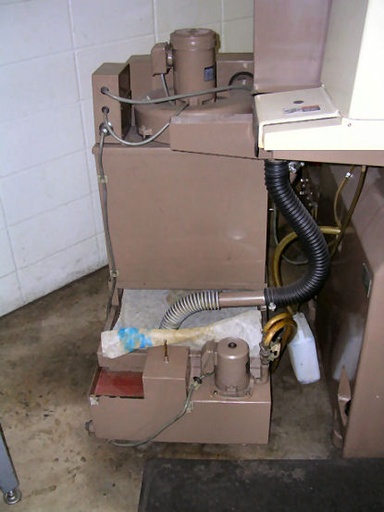

COOLANT SYSTEM WITH PAPER FILTRATION
DUST COLLECTOR
DAIKIN SPINDLE CHILLER
HYDRAULIC SYSTEM WITH CHILLER
RS-232 PORT
HUBS

MACHINE IS IN EXCELLENT CONDITION
