12 1/2" x 63" ECOTECH M7130/12" X 60",BRAND NEW , 2006   Our stock number: 56825

12 1/2 x 63 ECOTECH M7130/12 X 60 ,BRAND NEW , 2006

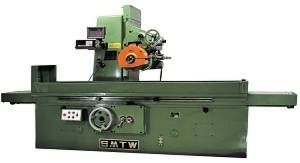

Ecotech Model M7130/1500 12" X 60"
CAPACITY
WIDTH :12.5 in.
LENGTH :63.0 in.
HEIGHT :15.75 in.(w/out chuck) 11.75 in.(w/chuck
MAXIMUM WORKLOAD :2,400 lbs.
NET WEIGHT :11,472 lbs.
DIMENSIONS :165.5 x 65.8 x 80.1 in. (LxWxH)
WHEELHEAD
HORSE POWER :6 hp
WHEEL SIZE :10.5 min / 14.0 max x 1.5 x 5 in.
WHEEL SPEED :1,440 rpm
SURFACE SPEED :5,277 sfm
SPINDLE TAPER :1:5 taper
OIL RESERVOIR :32 ISO viscosity
SPINDLE BEARING :adjustable bronze bushing/rear ball bear
(VERTICAL MOVEMENT)
RAPID TRAVEL :n/a
HANDWHEEL/REV :0.051 in.
HANDWHEEL/DIV :0.0005 in.
MAXIMUM TRAVEL RP :n/a
MAXIMUM TRAVEL HW :15.75 in.(w/out chuck) 11.75 in.(w/chuck
MINIMUM PRO DIV :n/a
SPINDLE TO TABLE :5.3 min. / 22.6 max.
RAPID MOTOR :n/a
(HORIZONTAL MOVEMENT)
CROSS TRAVEL :14.2 (manual) / 14.2 (hydraulic)
HANDWHEEL/REV :0.325 in.
HANDWHEEL/DIV :n/a
CROSS FEED :12-120 picks per 14.2 stroke(intermitten
:20.0 - 180.0 ipm (continuous)
CROSS MOTOR :hydraulic
WORKTABLE
FEED RANGE :118.0 - 708.0 ipm (variable)
MAXIMUM TRAVEL :7.9 min. - 65.0 max. (hydraulic only)
HANDWHEEL/REV :n/a
TABLE CONFIGURATION :3 (T-slots) .7 (width) 3.94 (distance)
CHUCK SIZE :12.6 x 63.0 in. (WxL)
CHUCK POWER :110 volt / 264 watt / 2.4 amp
TAILSTOCK
DRESSING :over the wheel
HYDRAULIC SYSTEM
HORSE POWER :4 hp
PRESSURE :300 psi.
RESERVOIR :70 gal. 32 ISO viscosity
COOLANT SYSTEM
FLOW :325 gpm
HORSE POWER :.16 hp
FLOW :6.6 gpm.
PRESSURE :43 psi.
RESERVOIR :45 gal.
ACCURACIES (PERMISSIBLE DEVIATION)
FLATNESS :0.0007/65.0 (long) 0.0001/12 (short)
PARALLELISM :0.001/65.0 (long) 0.0003/12.5 (short)
REPEATABILITY :0.00008 in.
POWER VOLTAGE
VOLTAGE :220 volts 3 phase 60 hz
TOTAL KVA :30 kva
CURRENT AMPS :50 amp
STANDARD EQUIPMENT
Operational & Maintenance Manual
Special Wrench Set
Work Light (low voltage)
Demagnetizer
Table Mount Dresser
Grinding Wheel w/Hub & Balancing Weights
Balancing Stand & Arbor
Complete Coolant System
Electro Magnetic Chuck
CAPITAL INVESTMENT
MACHINE MODELM7130/1500 MANUAL HORIZONTAL SURFACE GRINDERSPRICE$40,825.00
