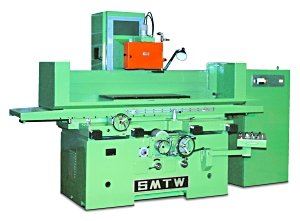

20" x 24" ECOTECH No M7150H/600,BRAND NEW, DOWN FEED, 2006   Our stock number: 56823

20 x 24 ECOTECH No M7150H/600,BRAND NEW, DOWN FEED, 2006


Model M7150H/600 20" X 24"
CAPACITY
WIDTH :20.0 in.
LENGTH :24.0 in.
HEIGHT :16.7 in. (w/out chuck) 12.7 in. (w/chuck
MAXIMUM WORKLOAD :2,800 lbs.
NET WEIGHT :13,230 lbs.
DIMENSIONS :129 x 89 x 98 in. (LxWxH)
WHEELHEAD
HORSE POWER :10 hp / 1,800 rpm
WHEEL SIZE :14.0 x 5.0 x 1.6 (ODxIDxW)
WHEEL SPEED :1,800 rpm
SURFACE SPEED :6597 spm
SPINDLE TAPER :1:5 taper
OIL RESERVOIR :n/a
SPINDLE BEARING :High Precision roller bearing (C36214)
DRESSING :over wheel/table mount

(VERTICAL MOVEMENT)
RAPID TRAVEL :20 ipm
HANDWHEEL/REV :.016 - micro feed .0002 in.
HANDWHEEL/DIV :.0004 in.
MAXIMUM TRAVEL RP :15.0 in.
MAXIMUM TRAVEL HW :15.9 in.
MINIMUM PRO DIV :.0001 - .0006
SPINDLE TO TABLE :22.8 in.
RAPID MOTOR :.5 hp / 1,800 rpm
(HORIZONTAL MOVEMENT)
CROSS TRAVEL :20.0 in.
HANDWHEEL/REV :.003 in.
HANDWHEEL/DIV :.0004 in.
CROSS FEED :1-20 picks per 20.0 stroke (intermittent)
2.0 - 19.7 ipm (continuous) 59.0 ipm (rap)
CROSS MOTOR :.2 hp / 3,240 rpm
WORKTABLE
FEED RANGE :118.0 - 787.5 ipm
MAXIMUM TRAVEL :30.7 in.
HANDWHEEL/REV :.275 in.
TABLE CONFIGURATION :3 (T slots) 0.708 (width)
CHUCK SIZE :19.685 x 39.37 in. (WxL)
CHUCK POWER :110 volt 220 watt 2 amp

HYDRAULIC SYSTEM
HORSE POWER :2.9 hp / 850 rpm
PRESSURE :198.8 psi
RESERVOIR :30 gal. 20 ISO viscosity
FLOW RATE :6.6 gpm
COOLANT SYSTEM
FLOW :202.6 gpm
HORSE POWER :.16 hp / 3,360 rpm
PRESSURE :43 psi
RESERVOIR :33 gal.
ACCURACIES (PERMISSIBLE DEVIATION)
FLATNESS :.0001/12.0 (overall)
PARALLELISM :.0004/39.0 (long) .0003/20 (short)
REPEATABILITY :.00004 in.
POWER VOLTAGE
VOLTAGE :220 volt 3 phase 60 hz.
TOTAL KVA :45 kva
CURRENT AMPS :80 amp.
STANDARD EQUIPMENT
Dresser Unit
Electro Magnetic Chuck
Balancing Stand
Operation & Service Manual
Work Light (low voltage)
Special Wrench set
Leveling Wedges
Complete Coolant System
Grinding Wheel w/hub
CAPITAL INVESTMENT
MODEL:
M7150H/600 DOWN FEED HORIZONTAL SURFACE GRINDERSPRICE$44,000.00
M7150H/1000 DOWN FEED HORIZONTAL SURFACE GRINDERSPRICE$54,400.00
