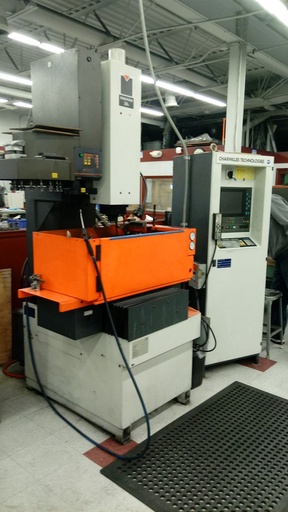

CHARMILLES ROBOFORM 20A,32 Amp,AUTO ELECT CHANGER,11.8"X,9.8"Y,Z, 1998   Our stock number: 93664


Travel:

x. axis travel.................. 11.8"
y axis travel................... 9.8"
z axis travel................... 9.8"

Work Tank Size:..................... 26 x 18 x 9.5"

Work Table Size:.................... 15.7 x 11.8" (400


Maximum Workpiece Weight:........... 440 lbs. (200 kg)

Measuring /Resolver Type:........... Linear Glass Scales

Distance from Platen to table:...... 4.4" - 14.2" (110x 360mm)


Maximum Electrode Weight:........... 55 lbs. (25 kg)

Table Resolution:................... .000040"


Power Supply:....................... 32 amps


Machine Weight:..................... 1,760 lbs.

Floor Area (LxWxH):................. 64 x 60 x 80"

Dielectric Fluid Capacity:.......... 55 gallons



Included:

Charmilles CNC Control

16 POSITION AUTOMATIC Electrode Changer
3R CHUCK ON THE RAM
