BELMONT MX-246 ZNC,100 Amp,18.5"x,14.9"y,7.2"z,47 x 27" TANK,267 HOURS, 2007   Our stock number: 83600

BELMONT MX-246 ZNC,100 Amp,18.5 x,14.9 y,7.2 z,47 x 27 TANK,267 HOURS, 2007

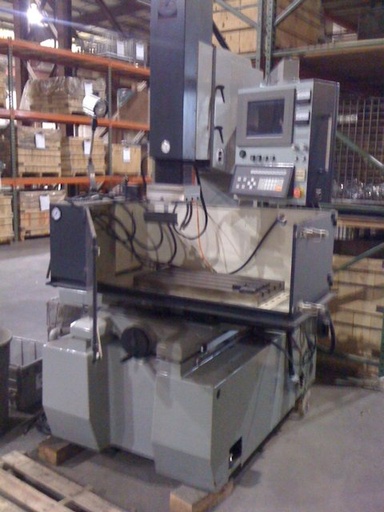

Click on picture below for larger version
BELMONT MX-246 ZNC,100 Amp,18.5 x,14.9 y,7.2 z,47 x 27 TANK,267 HOURS, 2007


************ 267 HOURS *************

X-AXIS TRAVEL............................ 18.5"
Y-AXIS TRAVEL............................ 14.9"
BACK SLIDE............................... 11.8"
Z-AXIS TRAVEL............................ 7.2"
OPEN HEIGHT.............................. 4.5" TO 23.6"
WORK TABLE............................... 29.5" X 15.7"
WORK TANK................................ 47.5" X 27.5" X 14.9"
MAXIMUM OIL LEVEL........................ 12.9"
DIELECTRIC RESERVOIR..................... 165 GALS.
WEIGHT CAPACITY:
ELECTRODE........................... 330 LBS
WORK PIECE.......................... 2860 LBS
MAXIMUM AVERAGE CURRENT.................. 100 AMPS

MACHINE IS IN LIKE NEW CONDITION IN A WEST COAST PLANT
