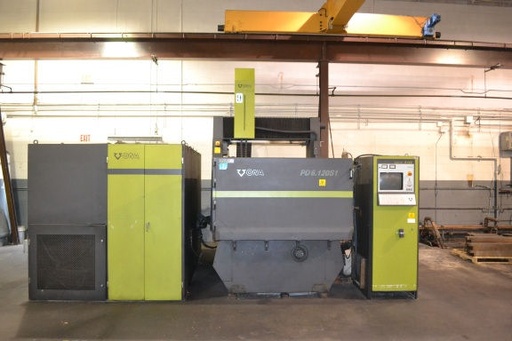

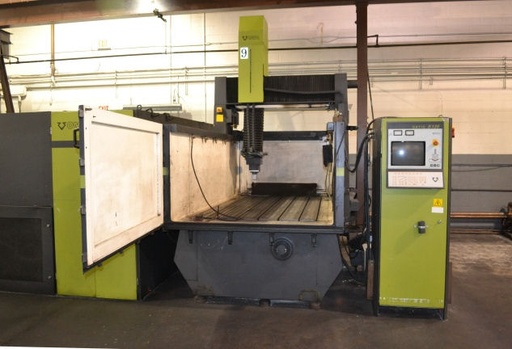

ONA PD 6.120S1, 120 Amp,120" TANK,80"TABLE,79"X,C-AXIS,8 ATC, 1998   Our stock number: 82904

ONA PD 6.120S1, 120 Amp,120 TANK,80 TABLE,79 X,C-AXIS,8 ATC, 1998

Click on picture below for larger version
ONA PD 6.120S1, 120 Amp,120 TANK,80 TABLE,79 X,C-AXIS,8 ATC, 1998ONA PD 6.120S1, 120 Amp,120 TANK,80 TABLE,79 X,C-AXIS,8 ATC, 1998


Working Tank Dimenstions L x W x Ht ... 118.1" x 59" x 36"
Work Table Dimensions ................. 78.74" x 46.45"
Maximum Distance Head to Table ........ 49.21"
X-Axis Bridge Travel .................. 79.34"
Y-Axis Head Travel .................... 39.49"
Z-Axis Ram Travel ..................... 23.88"
C-Axis ................................ 360 Degrees
Dielectric Maximum Height ............. 30.7"
Maximum Open Height ................... 43.3"
Maximum Work Piece Weight.............. 22,000 Lbs
Maximum Electrode Weight .............. 6,600 Lbs
Power ................................. 120 AMPS


EQUIPPED WITH:
DATIC S120 CNC Controls
Remote Operator Pendant
8-Station Automatic Tool Changer
Programable or Manual Control
C-Axis

Excellent Condition
