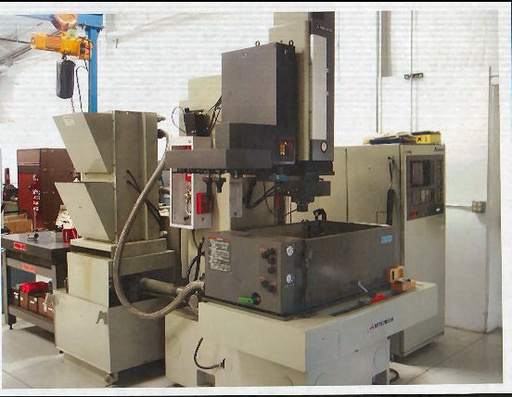

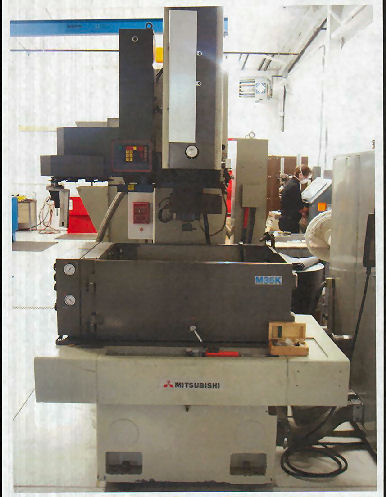

MITSUBISHI M35K,35 Amps, 16 atc,31.5"X 21.65" TANK,27.56" X-AXIS,C-AXIS, 1989   Our stock number: 79885

MITSUBISHI M35K,35 Amps, 16 atc,31.5 X 21.65 TANK,27.56 X-AXIS,C-AXIS, 1989

Click on picture below for larger version
MITSUBISHI M35K,35 Amps, 16 atc,31.5 X 21.65 TANK,27.56 X-AXIS,C-AXIS, 1989MITSUBISHI M35K,35 Amps, 16 atc,31.5 X 21.65 TANK,27.56 X-AXIS,C-AXIS, 1989MITSUBISHI M35K,35 Amps, 16 atc,31.5 X 21.65 TANK,27.56 X-AXIS,C-AXIS, 1989
MITSUBISHI M35K,35 Amps, 16 atc,31.5 X 21.65 TANK,27.56 X-AXIS,C-AXIS, 1989MITSUBISHI M35K,35 Amps, 16 atc,31.5 X 21.65 TANK,27.56 X-AXIS,C-AXIS, 1989


EXCELLENT CONDITION - VERY LIGHT USE
RECENTLY RECALIBRATED AND TESTED BY MITSUBISHI

WORK TANK SIZE........................ 31.5" X 21.65" X 12.2"
TRAVELS.......X-AXIS.................. 13.78"
Y-AXIS.................. 9.84"
Z-AXIS.................. 9.84"
TABLE SIZE............................ 27.56" X 19.69"
DISTANCE QUILL TO TABLE............... 9.84 - 19.69" (MIN-MAX)
MAX ELECTRODE WEIGHT.................. 165 LBS
MAX WORKPIECE WEIGHT.................. 1000 LBS

EQUIPPED WITH:

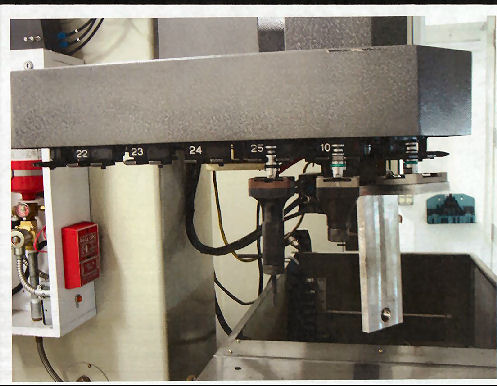

ORBITER
C-AXIS
MITSUBISHI CNC CONTROL WITH CRT
PULSED FLUSHING
MITSUBISHI G-35 GENERATOR WITH 35 AMPS
CHILLER
RS-232 PORT
SYSTEM 3R TOOLING KIT WITH MACRO MEASURING PROBE
