125 Ton AMADA ASTRO 100MH,10',106"BH,5 axis,ROBOT, 2000   Our stock number: 82899

125 Ton AMADA ASTRO 100MH,10',106 BH,5 axis,ROBOT, 2000

Click on picture below for larger version
125 Ton AMADA ASTRO 100MH,10',106 BH,5 axis,ROBOT, 2000125 Ton AMADA ASTRO 100MH,10',106 BH,5 axis,ROBOT, 2000

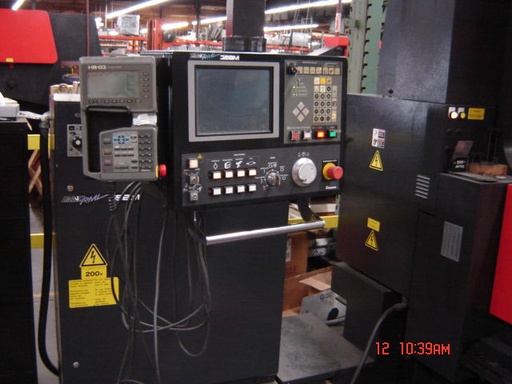

CNC CONTROLLER MODEL AMNC/RML39BM

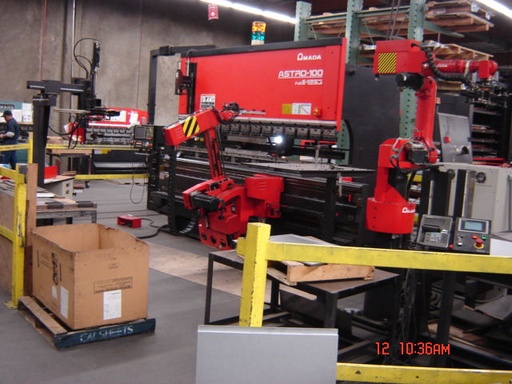

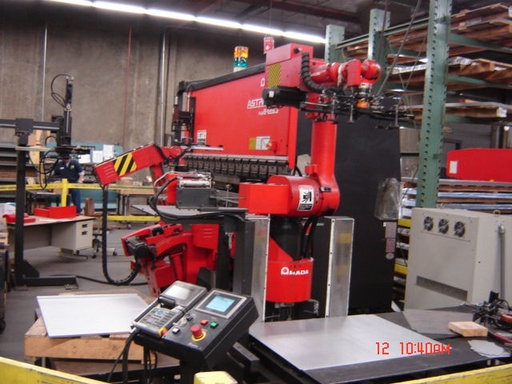

LOAD UNLOAD ROBOT MODEL ERX-1210
ARM STAND SUPPORT FOR OVERTURNING PARTS
PRESS BRAKE AXES.......................... 5
ROBOT AXES................................ 6

ROBOT BENDING CAPACITY:
MAX BLANK SIZE.......................... 31.5" X 39.5"
MIN..................................... 6" X 6"
MAX PART WEIGHT......................... 33 LBS

PRESS BRAKE CAPACITY;
MAX TONNAGE............................. 125 TONS
BED LENGTH.............................. 118"
MAX BENDING LENGTH...................... 122"
OPEN HEIGHT............................. 16.5"
THROAT DEPTH............................ 15.7"
STROKE LENGTH........................... 5.9"
DISTANCE BETWEEN UPRIGHTS............... 106.3"

MACHINE IS IN EXCELLENT CONDITION ON THE WEST COAST
